Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0157 › Female
ConnectorsFemale

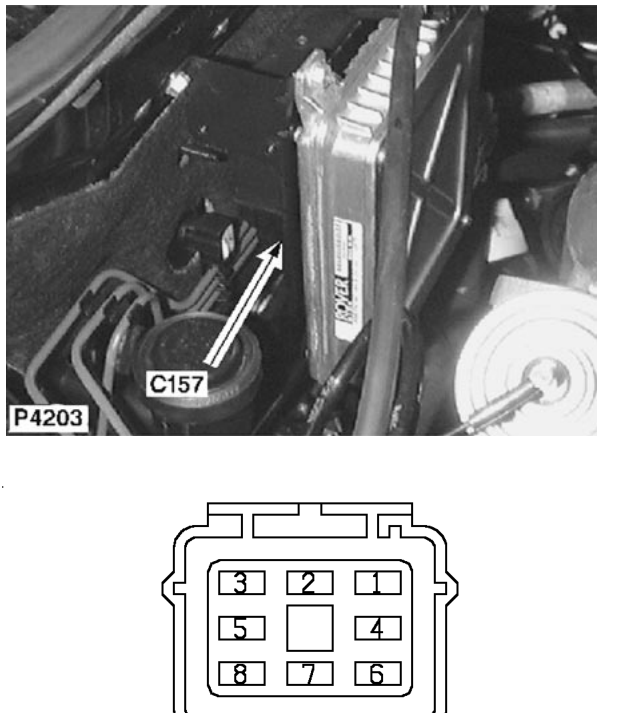

Modular engine management (MEMS) relay module - L Series
Female
BLACK
Top of bulkhead - centre
| Cav | Col | CCT |
|---|---|---|
| 1 | P | 17 |
| 1 | P | 35 |
| 3 | NO | 17 |
| 4 | NR | 17 |
| 5 | W | 17 |
| 6 | G | 17 |
| 7 | G | 17 |
| 8 | NO | 17 |
