Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0157 › Female
ConnectorsFemale

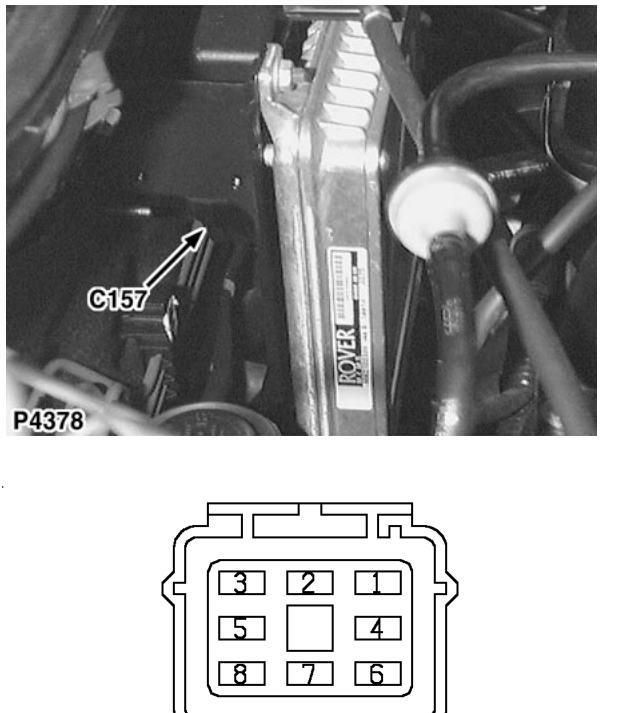

Modular engine management (MEMS) relay module - T Series
Female
BLACK
Top of bulkhead - centre
| Cav | Col | CCT |
|---|---|---|
| 1 | G | 67 |
| 2 | NU | 11 |
| 2 | NU | 12 |
| 3 | NK | 67 |
| 4 | YG | 67 |
| 5 | NR | 67 |
| 6 | P | 11 |
| 6 | P | 12 |
| 7 | P | 11 |
| 7 | P | 12 |
| 8 | NK | 67 |
