Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

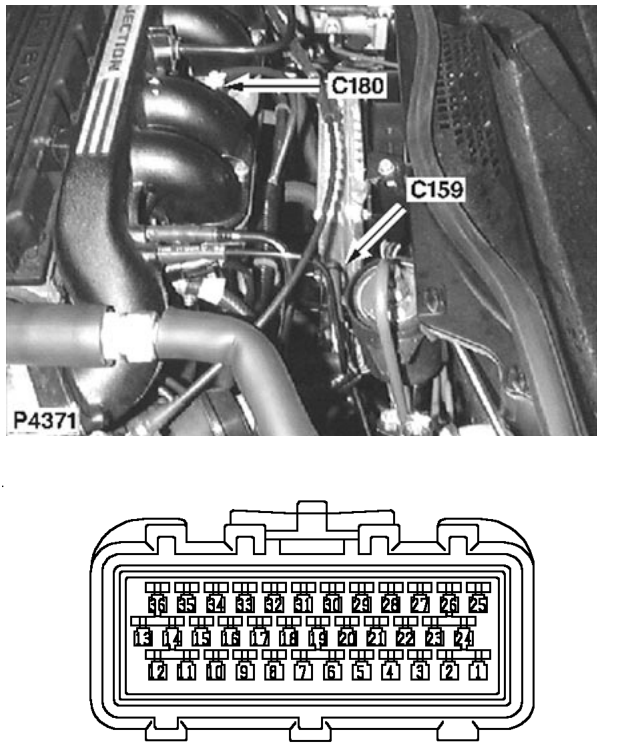

C0159 › Female

ConnectorsFemale · page 1 of 2

Modular engine management control unit - T Series

Female

BLACK

Top of bulkhead - centre

Cav	Col	CCT
1	W	67
2	KU	67
3	OS	67
4	WK	67
5	UY	11
6	SU	11
6	Y	12
7	S	11
7	S	12
8	YG	67
9	YP	67
10	K	67

Cav	Col	CCT
11	GK	67
12	U	67
13	BW	11
13	BW	12
15	UW	11
16	GB	67
17	Y	11
17	Y	12
18	LG	11
18	LG	12
19	UB	11
20	BP	67
