Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

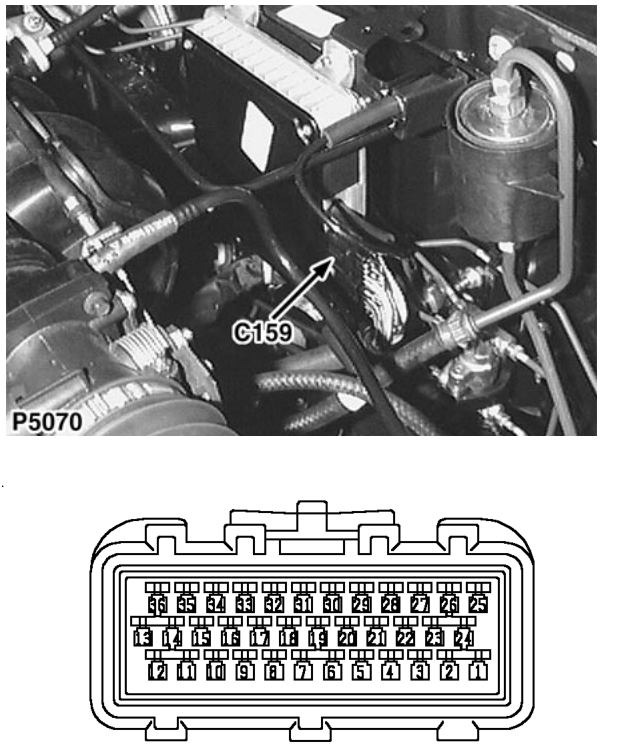

C0159 › Female

ConnectorsFemale · page 1 of 2

Modular engine management control unit - K Series

Female

BLACK

Top of bulkhead - centre

Cav	Col	CCT
2	KU	71
3	OS	71
4	WK	71
5	UY	11
6	SU	11
6	Y	12
7	S	11
7	S	12
8	YG	71
9	YP	71
10	K	71
11	GK	71

Cav	Col	CCT
13	BW	11
13	BW	12
15	UW	11
16	GB	71
18	LGS	11
18	LGS	12
19	UB	11
20	BP	71
21	YO	71
22	OG	71
23	YG	71
24	YU	71

05 General
