Male

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

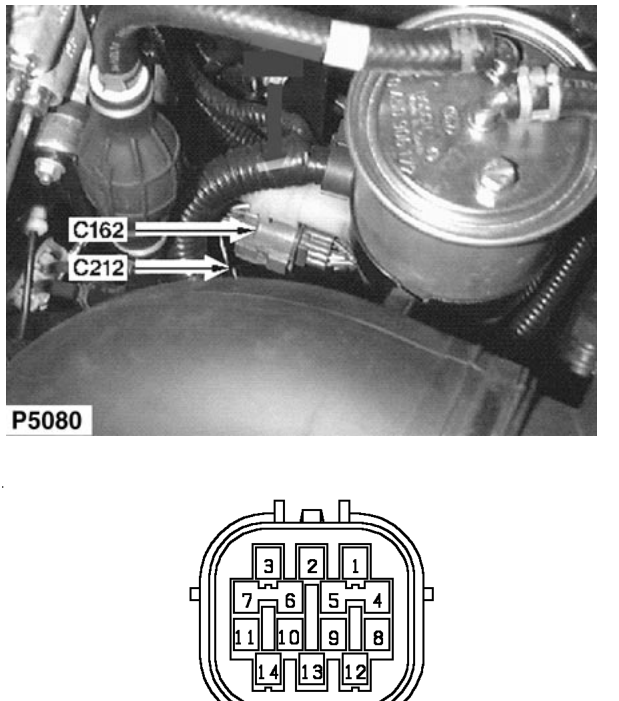

C0162 › Male

ConnectorsMale

Engine harness to main harness - L Series

Male

GREY

LH suspension turret

Cav	Col	CCT
1	WO	16
1	WO	17
2	WB	16
2	WB	17
3	BY	16
3	BG	17
4	PK	16
4	G	17
5	UR	11
5	Y	16
5	Y	17
6	GO	16
6	YG	17

Cav	Col	CCT
7	GU	16
7	GU	17
8	YR	68
9	WLG	16
9	K	17
10	GB	68
11	NY	11
11	NY	12
12	Y	68
13	GK	16
13	GK	17
14	WR	16
14	WR	17
