Male
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0162 › Male
ConnectorsMale

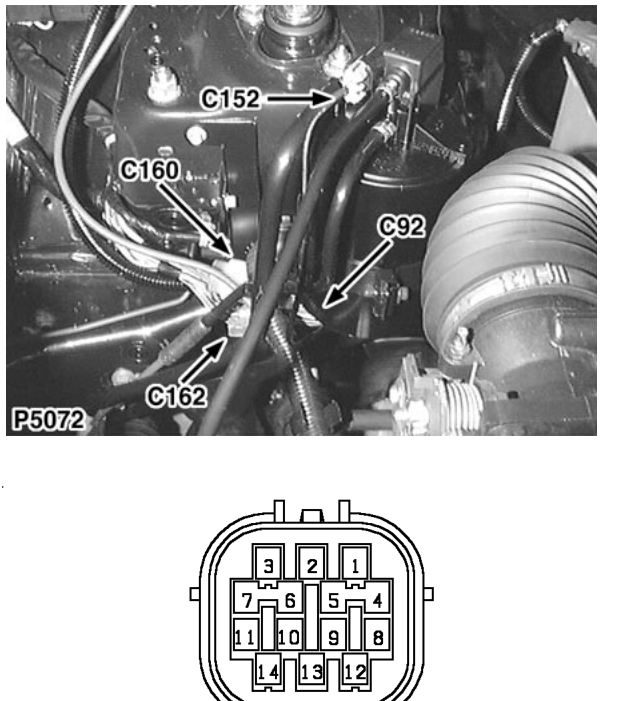

Engine harness to main harness - K Series
Male
GREY
Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | WO | 71 |
| 2 | WB | 71 |
| 3 | BW | 71 |
| 4 | G | 71 |
| 5 | UR | 11 |
| 5 | Y | 12 |
| 6 | YG | 71 |
| 7 | GU | 71 |
| 8 | WN | 71 |
| 9 | K | 71 |
| 10 | GN | 71 |
| Cav | Col | CCT |
|---|---|---|
| 11 | NY | 11 |
| 11 | NY | 12 |
| 12 | GY | 71 |
| 13 | GK | 71 |
| 14 | WR | 71 |
