Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0173 › Female

ConnectorsFemale

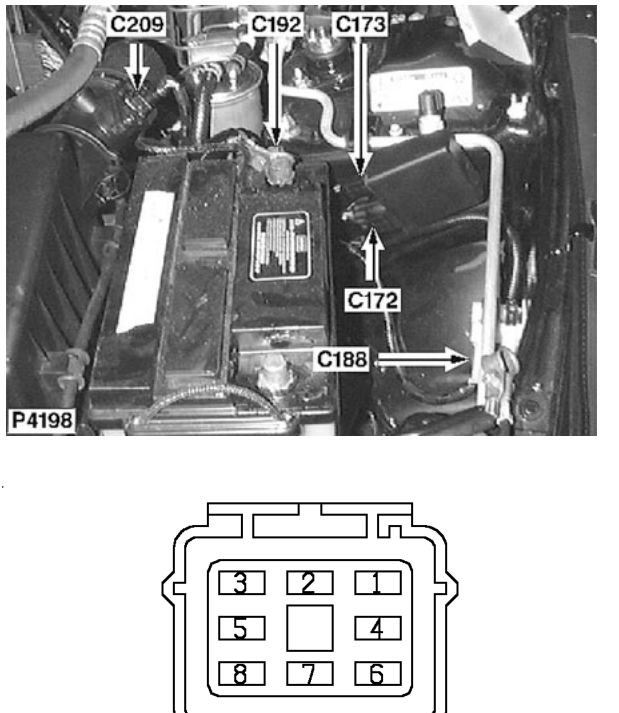

A/C relay module - L Series

Female

BLACK

LH side of engine compartment

Cav	Col	CCT
2	R	11
3	SU	34
3	SU	35
4	B	34
4	B	35
5	PS	34
5	PS	35
6	WR	34
6	WR	35
7	UP	34
7	UP	35
8	NW	34
8	NW	35

05 General
