Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0173 › Female
ConnectorsFemale

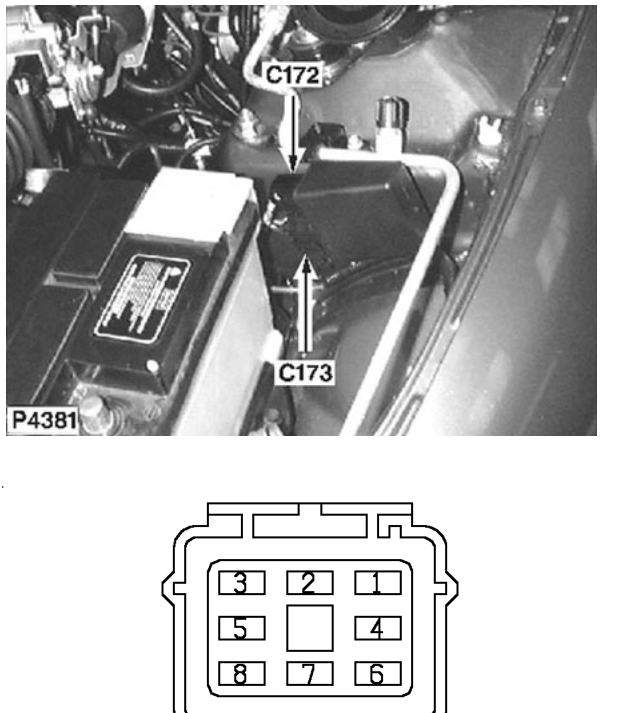

A/C relay module - T Series
Female
BLACK
Under bonnet, LH suspension turret
| Cav | Col | CCT |
|---|---|---|
| 2 | R | 11 |
| 3 | SU | 11 |
| 4 | B | 11 |
| 5 | PS | 11 |
| 6 | US | 11 |
| 7 | UP | 11 |
| 8 | NW | 11 |
