Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

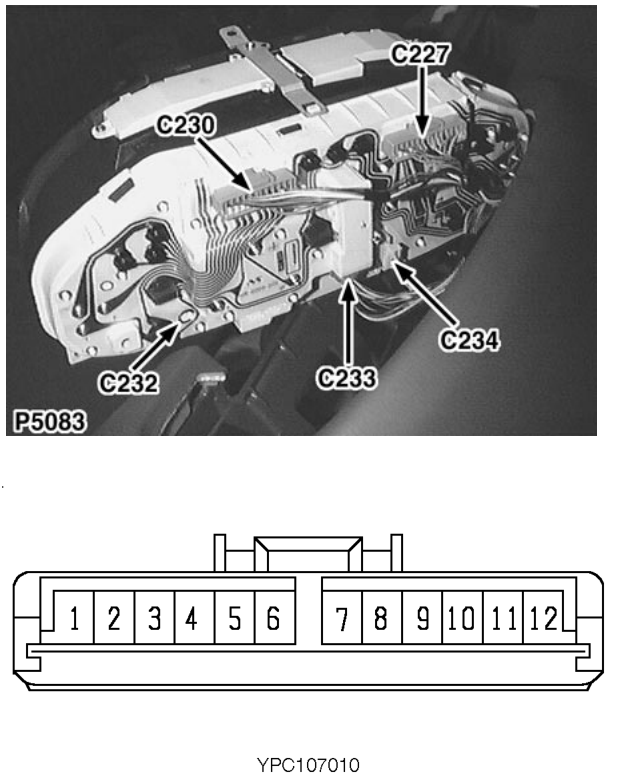

- C0227 › Female
ConnectorsFemale
Instrument pack
Female
LIGHT GREY
Behind instrument pack
Cav Col CCT
1 Y ALL 2 GO 18 2 YR 21 2 GO 22 3 YR ALL 4 BY ALL 5 WU ALL 6 YG ALL 7 B ALL 8 GR ALL 9 G ALL 10 U ALL 11 GU ALL 12 RG ALL
