Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

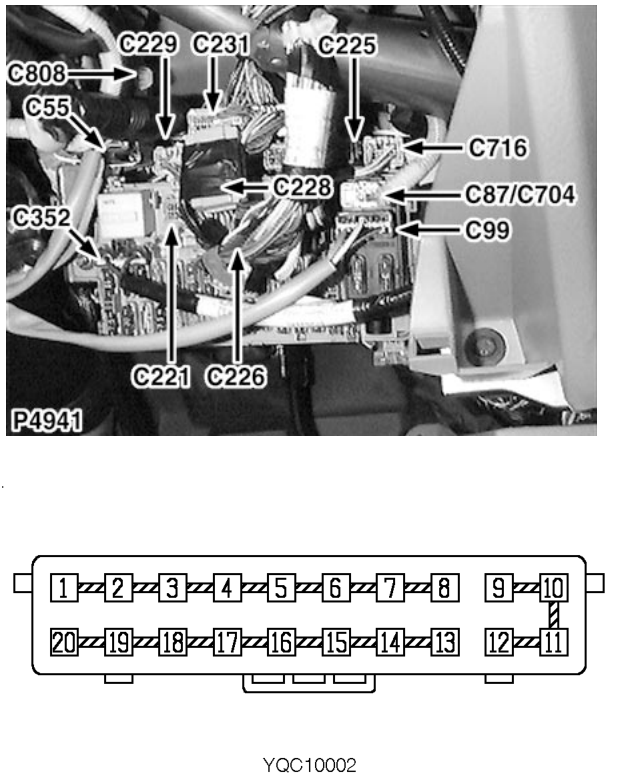

C0228 › Female

ConnectorsFemale

Header joint

Female

GREY

Behind passenger compartment fusebox cover

Cav	Col	CCT
1	RB	ALL
2	RB	ALL
3	RB	ALL
4	RB	2
5	RB	ALL
6	RB	ALL
7	RB	ALL
8	RB	ALL
9	Y	ALL
10	Y	ALL
11	Y	ALL
12	Y	ALL
13	B	ALL

Cav	Col	CCT
14	B	ALL
15	B	ALL
16	B	21
17	B	ALL
18	B	ALL
19	B	ALL
20	B	ALL

05 General
