Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0229 › Female
ConnectorsFemale
Fascia harness to main harness
Female
LIGHT GREY

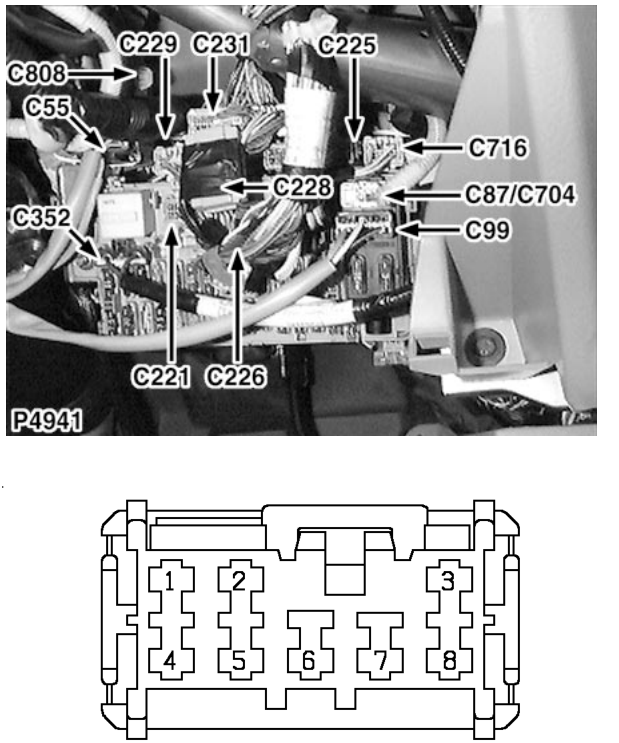

Behind passenger compartment fusebox cover
| Cav | Col | CCT |
|---|---|---|
| 1 | G | 22 |
| 2 | LG | 22 |
| 3 | LGW | 22 |
| 4 | GY | 22 |
| 5 | GU | 22 |
| 6 | GB | 22 |
| 7 | GW | 22 |
| 8 | GR | 22 |
