Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

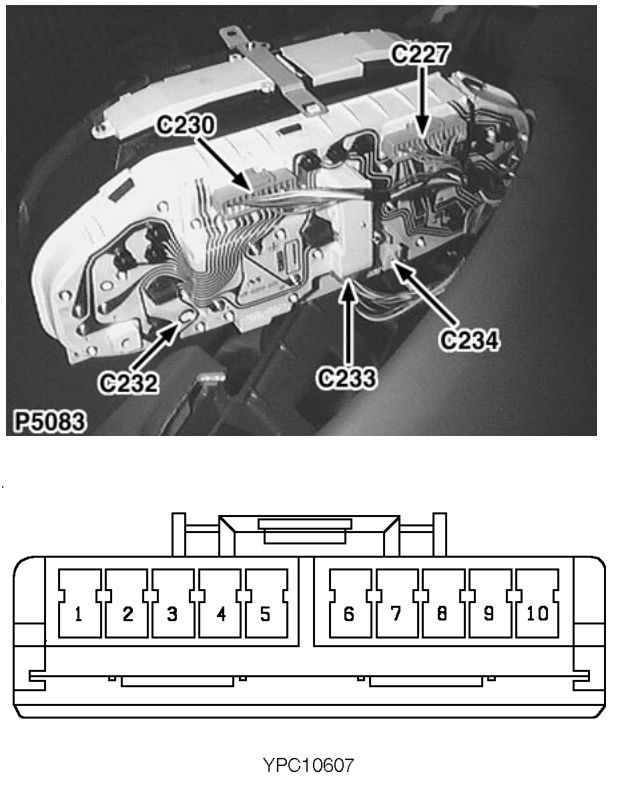

- C0230 › Female
ConnectorsFemale
Instrument pack
Female
LIGHT GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | GY | ALL |
| 2 | O | ALL |
| 3 | RB | ALL |
| 4 | B | ALL |
| 5 | GR | ALL |
| 6 | YU | ALL |
| 7 | GR | 18 |
| 8 | GB | ALL |
| 9 | WB | ALL |
| 10 | GR | ALL |
