Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0233 › Female
ConnectorsFemale

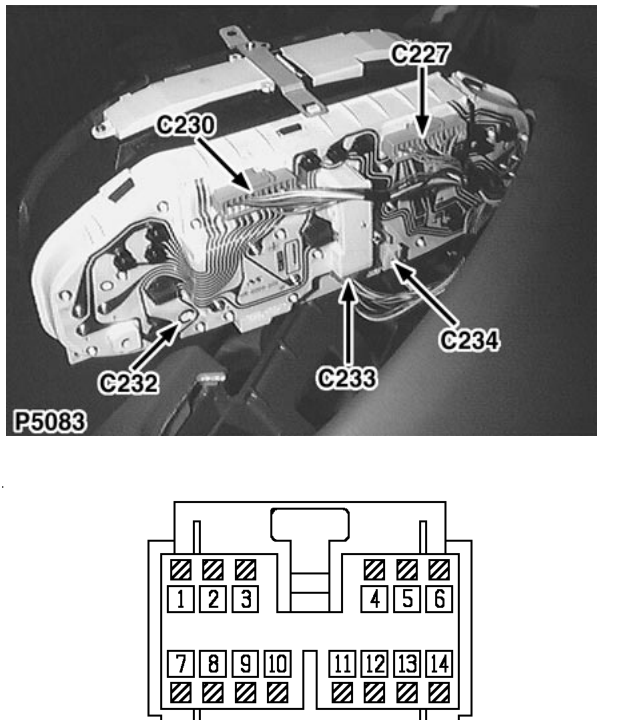

Instrument pack
Female
GREEN
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | Y | 22 |
| 2 | RB | 22 |
| 4 | LGW | 22 |
| 5 | GY | 22 |
| 6 | GU | 22 |
| 9 | B | 22 |
| 10 | G | 22 |
| 11 | GB | 22 |
| 12 | LG | 22 |
| 13 | GR | 22 |
| 14 | GW | 22 |
