Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0234 › Female
ConnectorsFemale

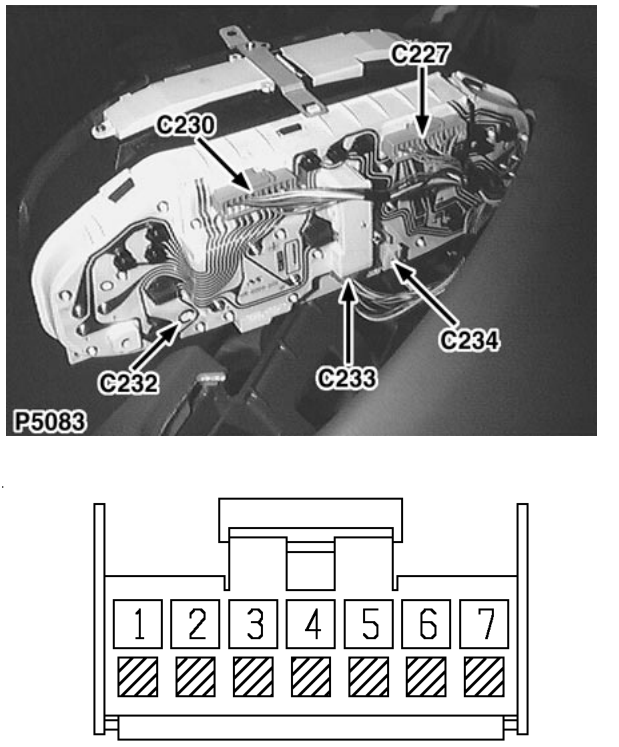

Instrument pack
Female
YELLOW
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | UR | ALL |
| 2 | B | ALL |
| 3 | Y | ALL |
| 4 | WY | ALL |
| 5 | GR | ALL |
| 6 | UB | 41 |
| 6 | P | 64 |
| 7 | O | 64 |
