Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0449 › Female
ConnectorsFemale

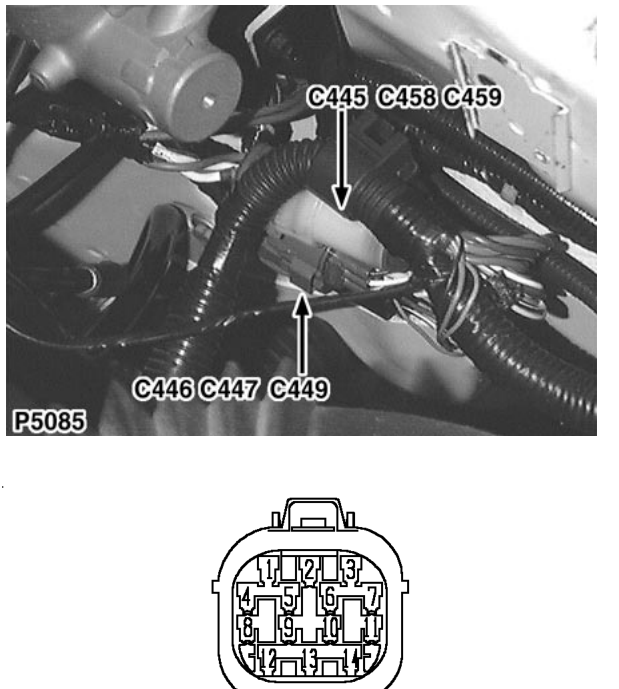

Engine compartment harness to engine harness
Female
GREY
Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | O | 79 |
| 2 | U | 79 |
| 3 | BG | 79 |
| 4 | PK | 16 |
| 4 | G | 19 |
| 5 | Y | 12 |
| 5 | UR | 30 |
| 6 | GO | ALL |
| 7 | YG | 79 |
| 8 | YR | 79 |
| 9 | K | 79 |
| 10 | GB | 79 |
| Cav | Col | CCT |
|---|---|---|
| 11 | WU | 79 |
| 12 | GY | 79 |
| 13 | GK | 79 |
| 14 | BW | 79 |
