Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0450 › Female
ConnectorsFemale

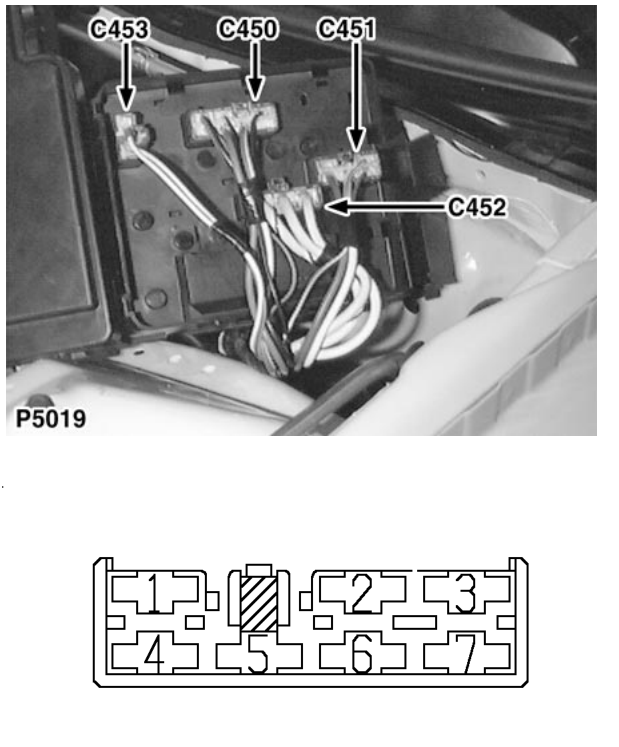

Engine compartment fusebox
Female
BROWN
Rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | BY | 79 |
| 2 | B | 79 |
| 3 | UY | 79 |
| 4 | Y | 12 |
| 5 | UW | 79 |
| 6 | UP | 16 |
| 6 | BY | 19 |
| 6 | UP | 20 |
| 6 | UP | 34 |
| 7 | UY | 79 |
