Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

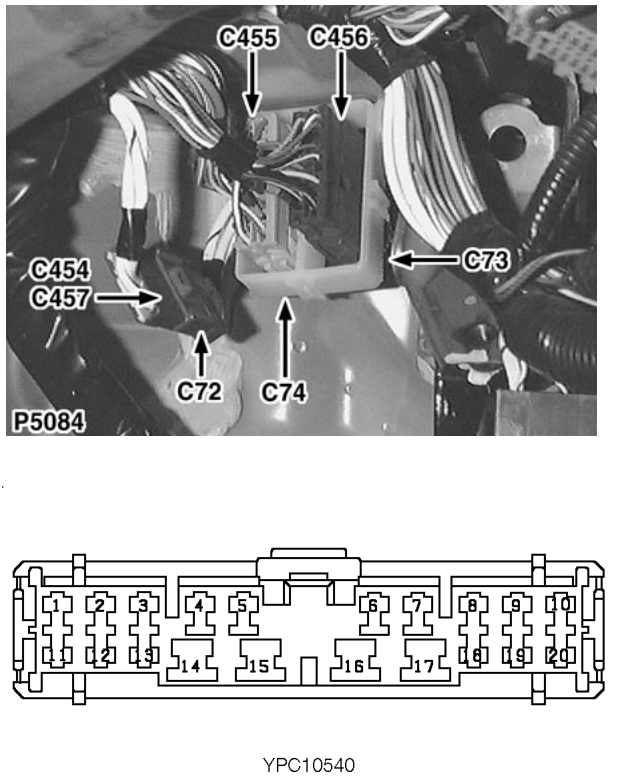

C0455 › Female

ConnectorsFemale

Engine compartment harness to main harness

Female

LIGHT GREY

Behind LH side of fascia

Cav	Col	CCT
1	WG	79
2	UR	79
3	YR	79
4	GU	79
5	RG	79
6	RY	79
7	WB	79
8	RB	79
9	O	79
10	U	79
11	YG	79
12	YR	79

Cav	Col	CCT
13	GB	79
14	UW	79
15	UY	79
16	PK	79
17	GR	ALL
18	WU	79
19	GY	79
20	GK	79
