Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0456 › Female

ConnectorsFemale

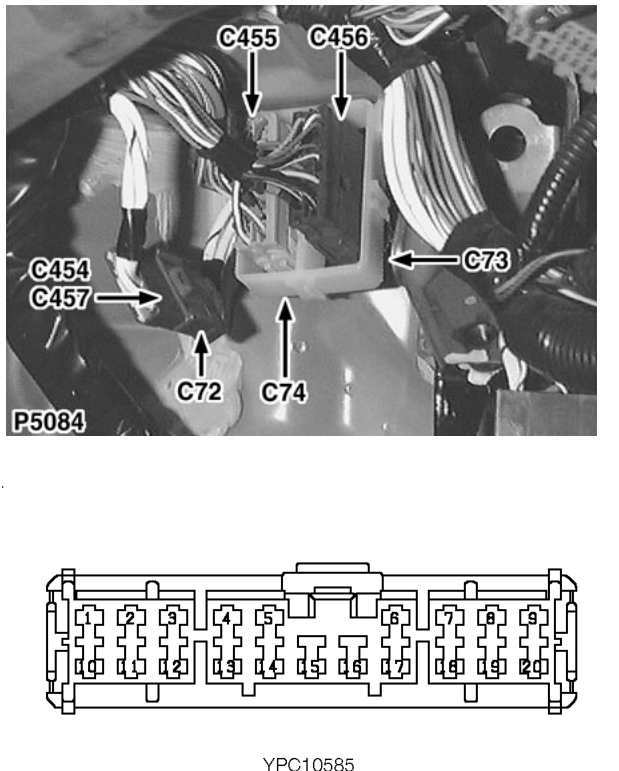

Engine compartment harness to main harness

Female

BROWN

Behind LH side of fascia

Cav	Col	CCT
13	U	79
14	UW	79
15	UY	79
16	K	79
17	NW	21
18	BY	79
19	GW	16
19	N	21
19	GW	34
20	WG	16
20	NU	21
20	WG	34

Cav Col CCT

1 YW 30 2 UR 30 3 BW 79 4 UY 79 5 WU 79 6 GO ALL 7 BW ALL 8 GR 79 9 BG 79 10 YU 79 11 GB 79 12 RB 16 12 G 19 12 RB 34

05 General
