Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0550 › Female

ConnectorsFemale

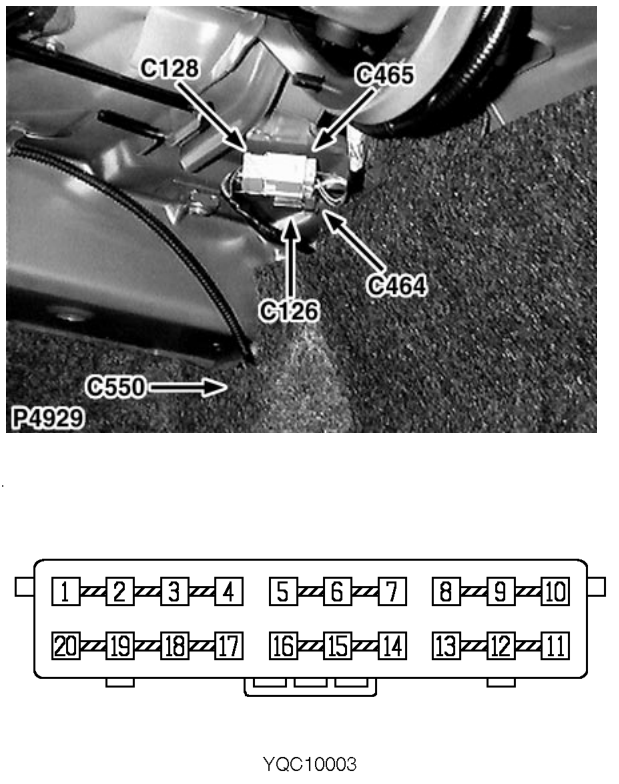

Joint connector

Female

ORANGE

Base of ’C’ post RH side

Cav	Col	CCT
1	GW	78
2	GW	78
3	GW	78
4	GW	78
5	RY	78
6	RY	78
7	RY	78
8	GB	78
9	GB	78
10	GB	78
17	RB	78
19	RB	78
20	RB	78
