Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

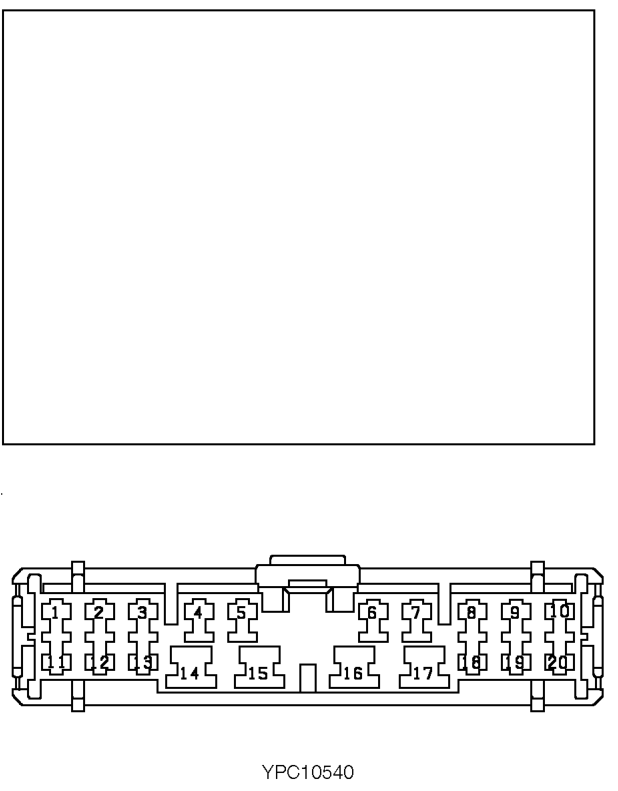

C0603 › Female

ConnectorsFemale

Engine compartment harness to main harness

Female

LIGHT GREY

Behind LH side of fascia

Cav	Col	CCT
1	YG	69
2	YR	69
3	O	69
5	U	69
7	WU	69
8	BY	69
9	YB	69
10	Y	69
11	B	69
12	G	69
13	GR	69
14	UW	69
15	BY	69

Cav	Col	CCT
16	R	69
17	UR	69
18	YB	69
19	BY	69
20	GB	69

05 General
