Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

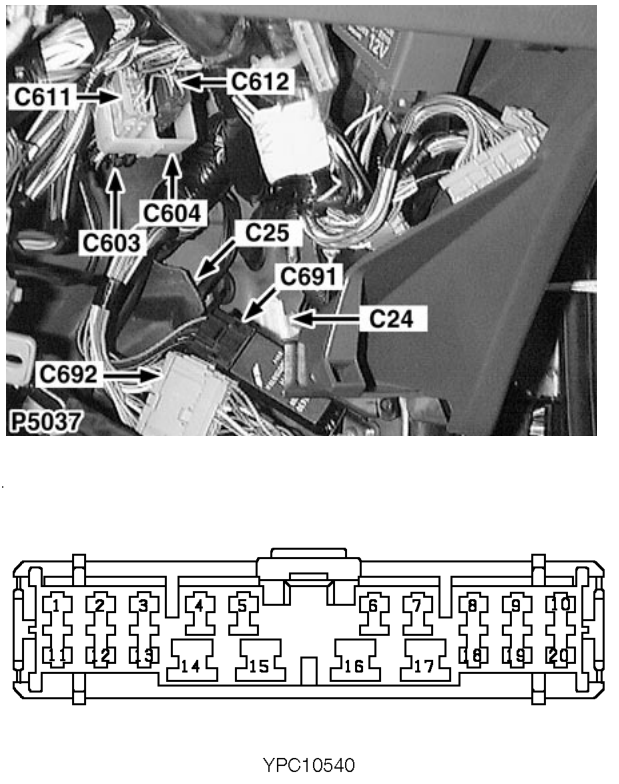

C0603 › Female

ConnectorsFemale

Engine compartment harness to main harness

Female

LIGHT GREY

Behind RH side of fascia

Cav	Col	CCT
1	YG	70
2	YR	70
3	O	70
5	U	70
6	R	70
7	WU	70
8	BY	70
9	YB	70
10	Y	70
11	B	70
12	G	70
13	GR	70
14	UW	70

Cav	Col	CCT
15	YU	70
17	UR	70
18	YB	70
19	BY	70
20	GB	70

05 General
