Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section

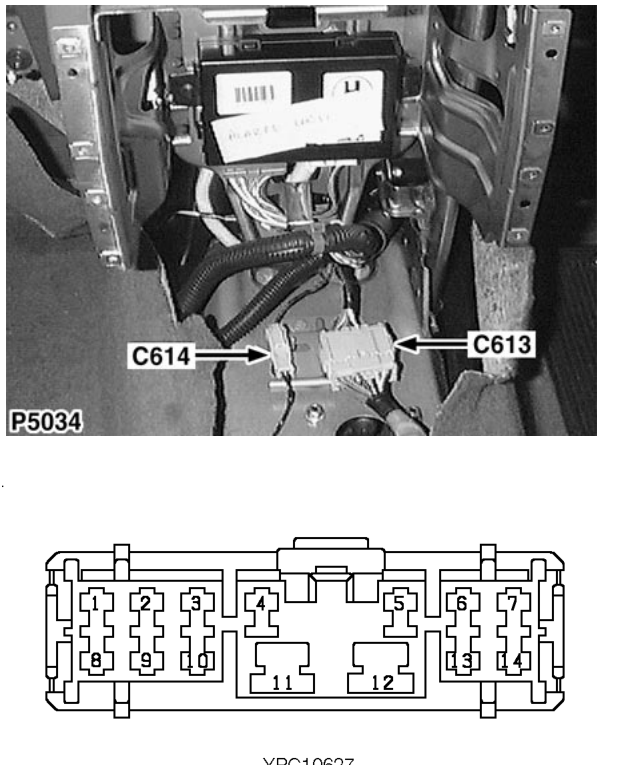

- C0613 › Female
ConnectorsFemale
Automatic transmission selector
Female
LIGHT GREY
Behind centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | GB | ALL |
| 2 | GU | ALL |
| 3 | GY | ALL |
| 4 | GB | ALL |
| 5 | Y | ALL |
| 6 | LGW | ALL |
| 7 | B | ALL |
| 8 | LG | ALL |
| 9 | GR | ALL |
| 10 | GW | ALL |
| 11 | BR | ALL |
| 12 | BG | ALL |
