Male (page 2 of 2)
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0612
ConnectorsMale · page 2 of 2

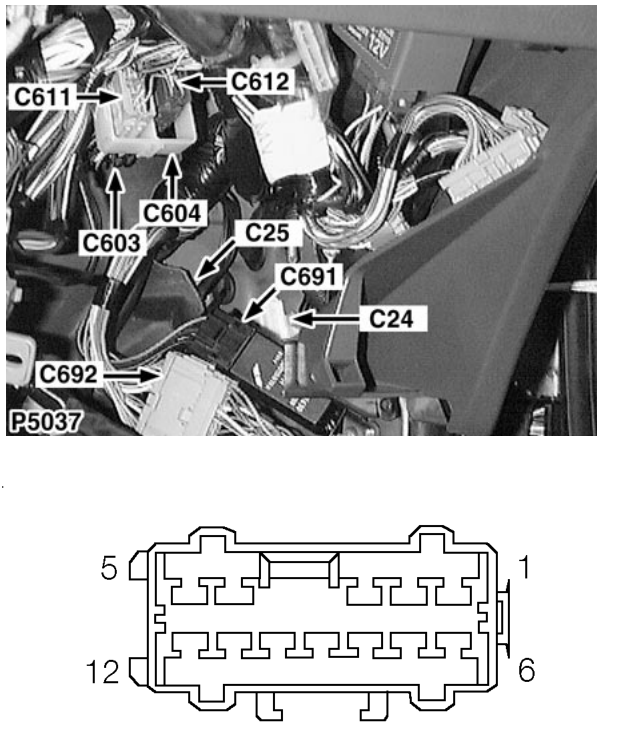

Main harness to engine compartment harness
BROWN
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | YU | 70 |
| 2 | RG | 70 |
| 3 | RY | 70 |
| 4 | RB | 70 |
| 5 | GY | 70 |
| 6 | GB | 70 |
| 7 | U | 70 |
| 8 | UW | 70 |
| 9 | UY | 70 |
| 10 | BR | 70 |
| 11 | Y | 70 |
| 12 | UB | 70 |
