Rover 400 Electrical Library (1998 model year on)05 · Connectors
05 · General

Female

Make
Rover
Model
400 Electrical Library
Year
1998 model year on
Section
C0622 › Female
ConnectorsFemale

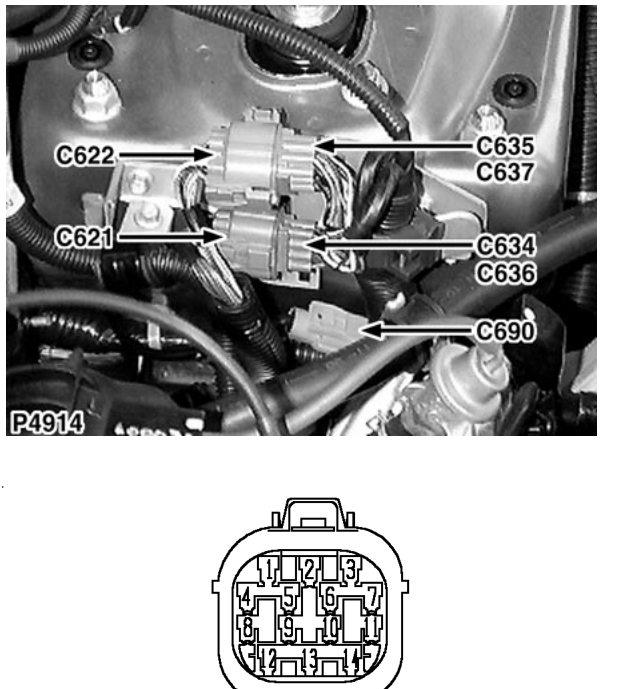

Diagram

Main harness to engine harness

Female

GREY

RH suspension turret

Cav Col CCT

1 O 69 2 BW 69 3 BU 69 4 U 69 5 YW 69 6 WY 69 7 GW 69 8 YG 69 9 YU 69 10 GU 69 11 RB 69 12 WR 69 13 RW 69 14 RY 69
