Rover 400 Electrical Library (1998 model year on)05 · Connectors
05 · General

Female

Make
Rover
Model
400 Electrical Library
Year
1998 model year on
Section
C0622 › Female
ConnectorsFemale

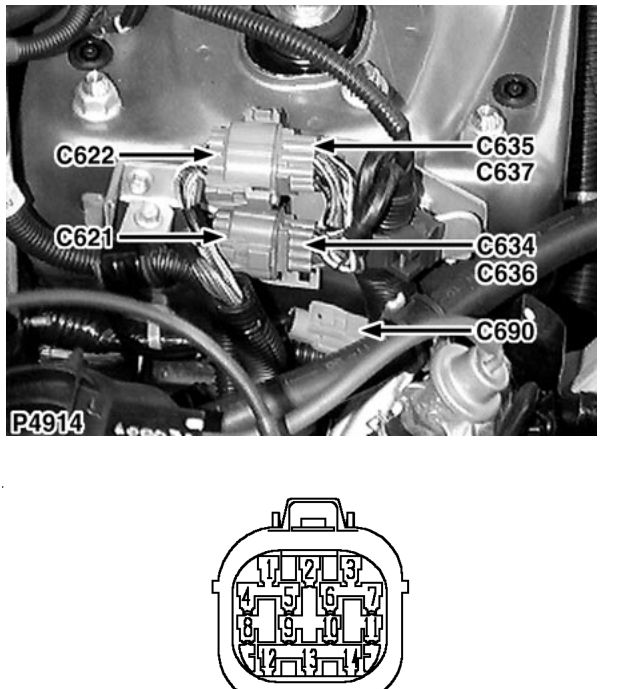

Diagram

Main harness to engine harness

Female

GREY

LH suspension turret

Cav Col CCT

1 O 70 2 BW 70 3 BU 70 4 U 70 5 YW 70 6 WY 70 7 GW 70 8 YG 70 9 YU 70 10 GU 70 11 RB 70 12 WR 70 13 RW 70 14 RY 70
