Female
- Make
- Rover
- Model
- 400 Electrical Library
- Year
- 1998 model year on
- Section
- C0626 › Female
ConnectorsFemale

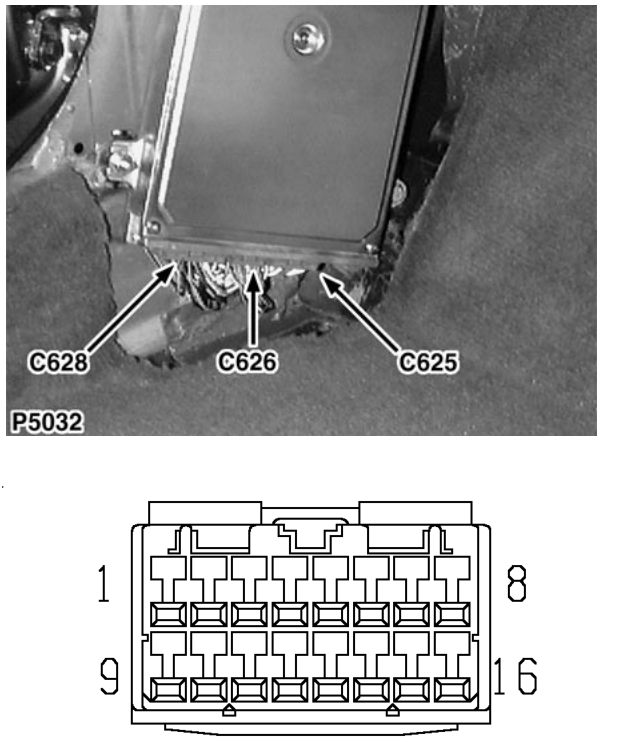

Modular engine management control unit
Female
GREY
Passenger’s footwell
| Cav | Col | CCT |
|---|---|---|
| 2 | G | 70 |
| 4 | BW | 70 |
| 5 | G | 70 |
| 6 | UR | 70 |
| 7 | GU | 70 |
| 8 | YB | 70 |
| 12 | O | 70 |
| 15 | GB | 70 |
| 16 | NB | 70 |
