Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

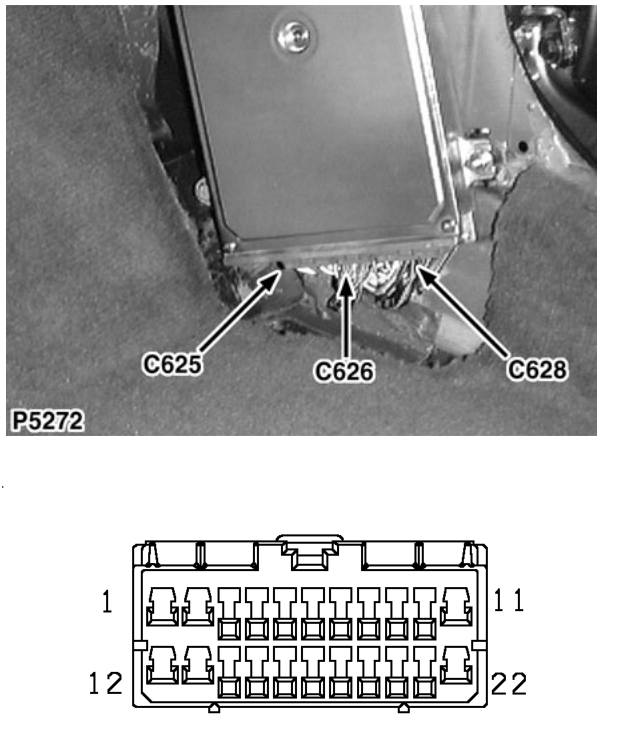

C0625 › Female

ConnectorsFemale

Modular engine management control unit

Female

GREY

Passenger’s footwell

Cav	Col	CCT
1	GW	69
2	YW	69
3	WY	69
4	RY	69
5	RW	69
6	RB	69
7	WR	69
8	P	69
10	R	69
11	WU	69
12	GU	69

Cav	Col	CCT
13	YU	69
16	WR	69
21	N	69
22	GW	69
