Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

C0625 › Female

ConnectorsFemale

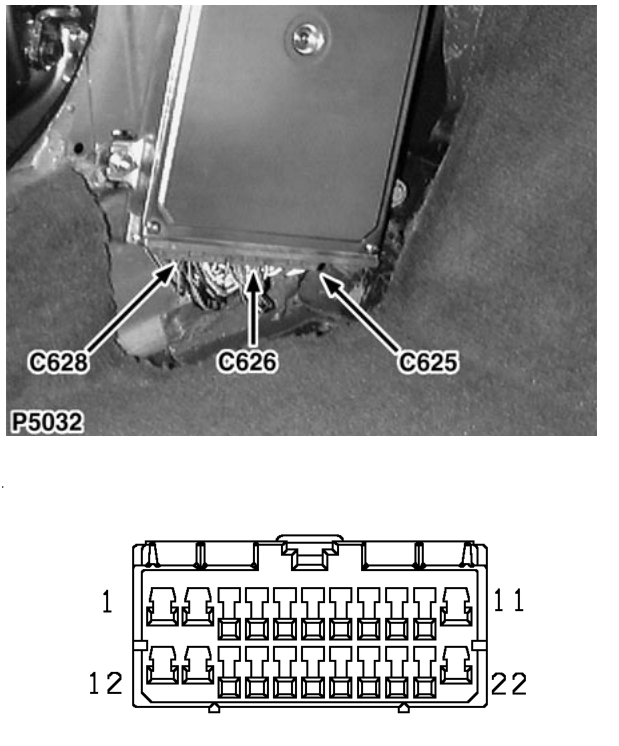

Modular engine management control unit

Female

GREY

Passenger’s footwell

Cav	Col	CCT
1	GW	70
2	YW	70
3	WY	70
4	RY	70
5	RW	70
6	RB	70
7	WR	70
8	P	70
10	R	70
11	WB	70
12	GU	70

Cav	Col	CCT
13	YU	70
16	WR	70
19	U	70
21	N	70
22	GW	70
