Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

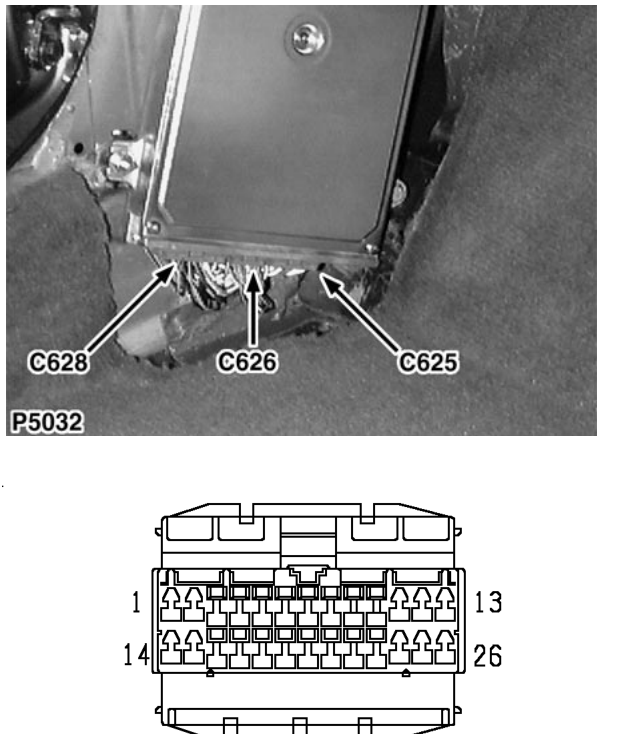

C0628 › Female

ConnectorsFemale

Engine control unit

Female

BLUE

Passenger’s footwell

Cav	Col	CCT
1	YB	70
4	Y	70
5	GB	70
6	R	70
7	GO	70
10	GY	70
12	R	70
13	N	70
14	NB	70
16	YG	70
17	R	70
18	BU	70

Cav	Col	CCT
19	O	70
24	BW	70
25	B	70
26	B	70

05 General
