Female

Make

Rover

Model

400 Electrical Library

Year

1998 model year on

Section

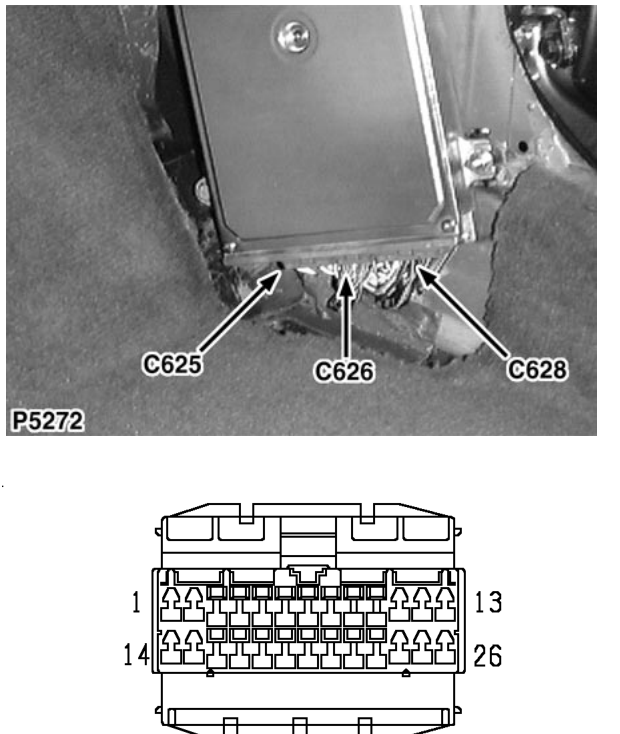

C0628 › Female

ConnectorsFemale

Engine control unit

Female

BLUE

Passenger’s footwell

Cav	Col	CCT
1	YB	69
4	Y	69
5	GB	69
6	R	69
7	GO	69
10	GY	69
12	R	69
13	N	69
14	NB	69
16	YG	69
17	R	69
18	BU	69

Cav	Col	CCT
19	O	69
24	BW	69
25	B	69
26	B	69

05 General
