Rover 400 Workshop Manual Supplement (1999)05 · Engine management system - MEMS
05 · Engine

Fuel injectors

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs › Fuel injectors
Engine management system - MEMSFuel injectors

FUEL INJECTORS

Service repair no - 19.60.12

Remove

  1. Disconnect battery earth lead.
  2. Remove fuel rail. See this section.

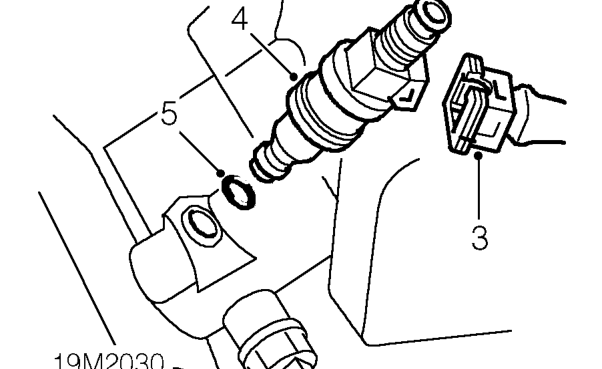

Fuel injectors – Remove fuel rail. See this section.
  1. Disconnect multiplugs from injectors.
  2. Remove injectors.
  3. Remove and discard ’O’ rings from injectors.
  4. Fit protective caps to each end of injectors.

Refit

  1. Clean injectors and recesses in inlet manifold.
  2. Lubricate new ’O’ ring seals with silicone grease and fit to injectors.
  3. Fit injectors to inlet manifold.
  4. Connect multiplugs to injectors.
  5. Fit fuel rail. See this section.
  6. Connect battery earth lead.
