Rover 400 Workshop Manual Supplement (1999)05 · Engine management system - MEMS
05 · Engine

Spark plugs

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Repairs › Spark plugs
Engine management system - MEMSSpark plugs

SPARK PLUGS

Service repair no - 18.20.02

Remove

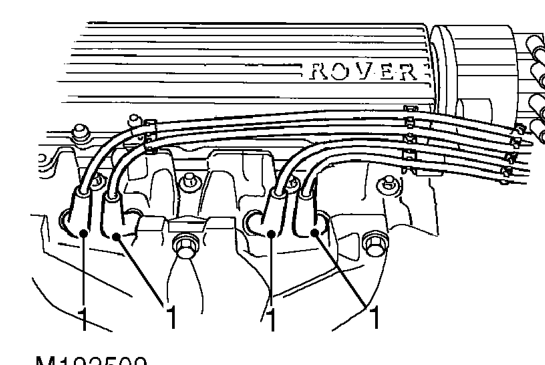

Spark plugs – Service repair no - 18.20.02
  1. Disconnect h.t. leads from spark plugs.

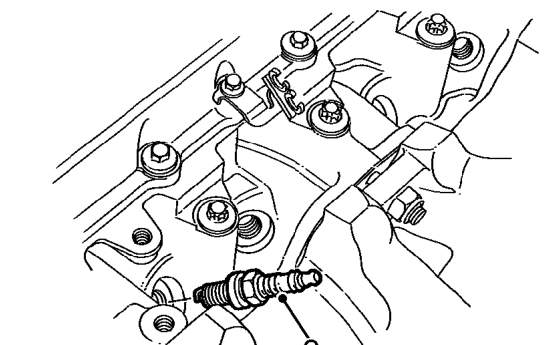

Spark plugs – Disconnect h.t. leads from spark plugs.
  1. Using a 16 mm spark plug socket, remove 4 spark plugs.

Refit

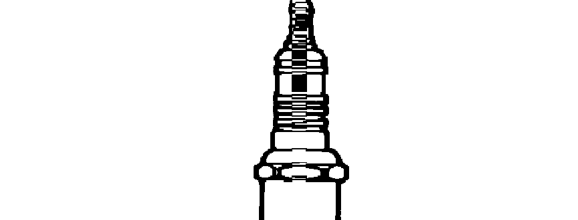

  1. Fit terminals to new spark plugs.
Spark plugs – Fit terminals to new spark plugs.
  1. Set gap of each spark plug to 0.85 mm.
  2. Fit spark plugs and tighten to 27 Nm.
  3. Connect h.t. leads to spark plugs.
