Rover 400 Workshop Manual Supplement (1999)07 · Manifold & exhaust systems
07 · Engine

Manifold & exhaust systems (Exhaust system): Description and operation

Make
Rover
Model
400 Workshop Manual Supplement
Year
1999
Section
Description and operation › Exhaust system
Manifold & exhaust systemsExhaust system

EXHAUST SYSTEM

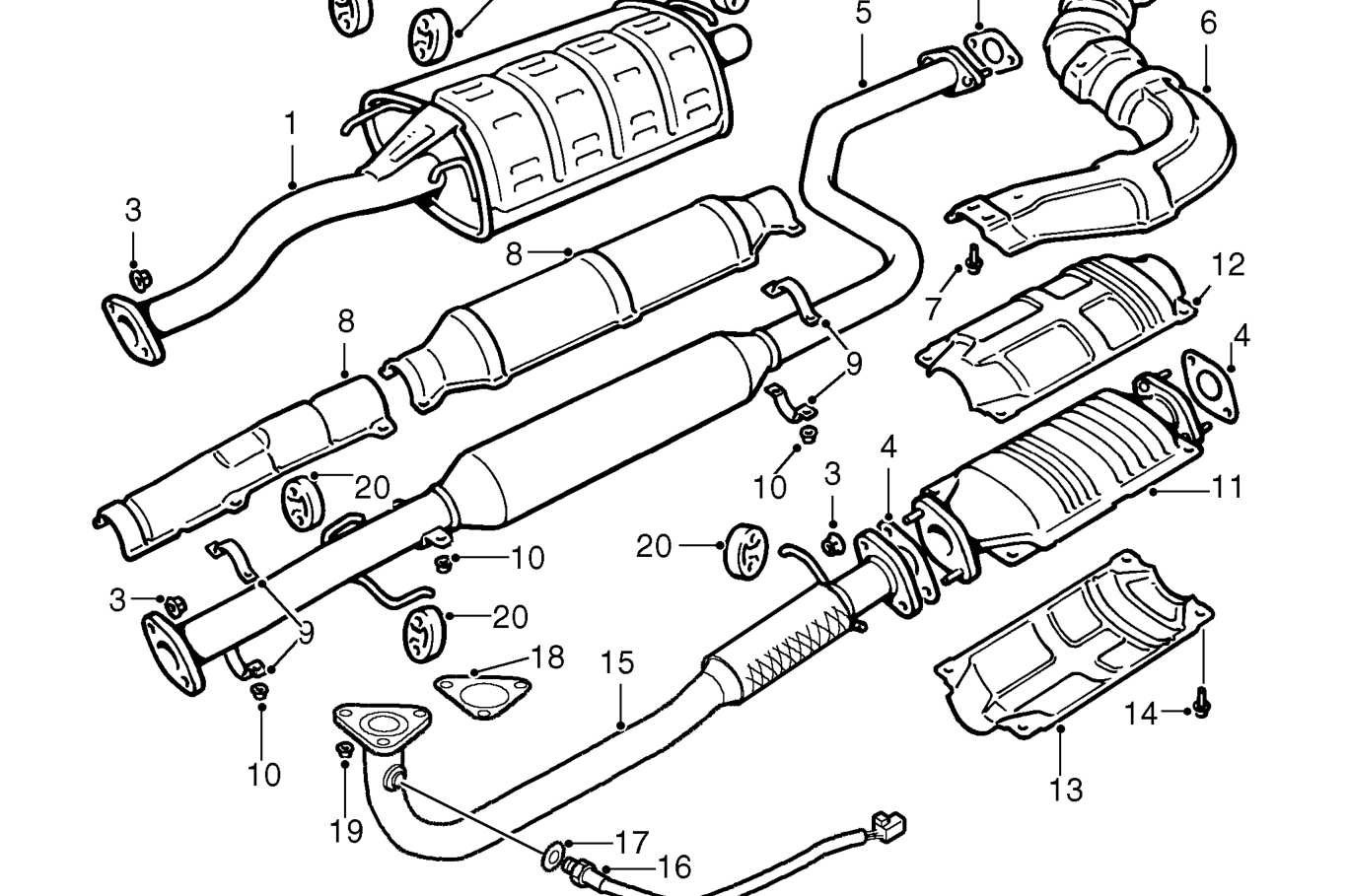

Exhaust system
  1. Exhaust tail pipe
  2. Rubber mounting - 3 off
  3. Flange nut - 6 off
  4. Gasket - pipe flange - 3 off
  5. Exhaust intermediate pipe
  6. Heat shield - fuel tank
  7. Bolt - 3 off
  8. Heat shield - intermediate pipe
  9. Mounting bracket - heatshield - 4 off
  10. Flange nut - 6 off
  11. Catalytic converter
  12. Heat shield - upper - catalyst
  13. Heat shield - lower - catalyst
  14. Bolt - 4 off
  15. Exhaust front pipe
  16. Heated oxygen sensor
  17. Sealing washer - heated oxygen sensor
  18. Gasket - front pipe to manifold
  19. Flange nut - 3 off
  20. Rubber mounting - 3 off
