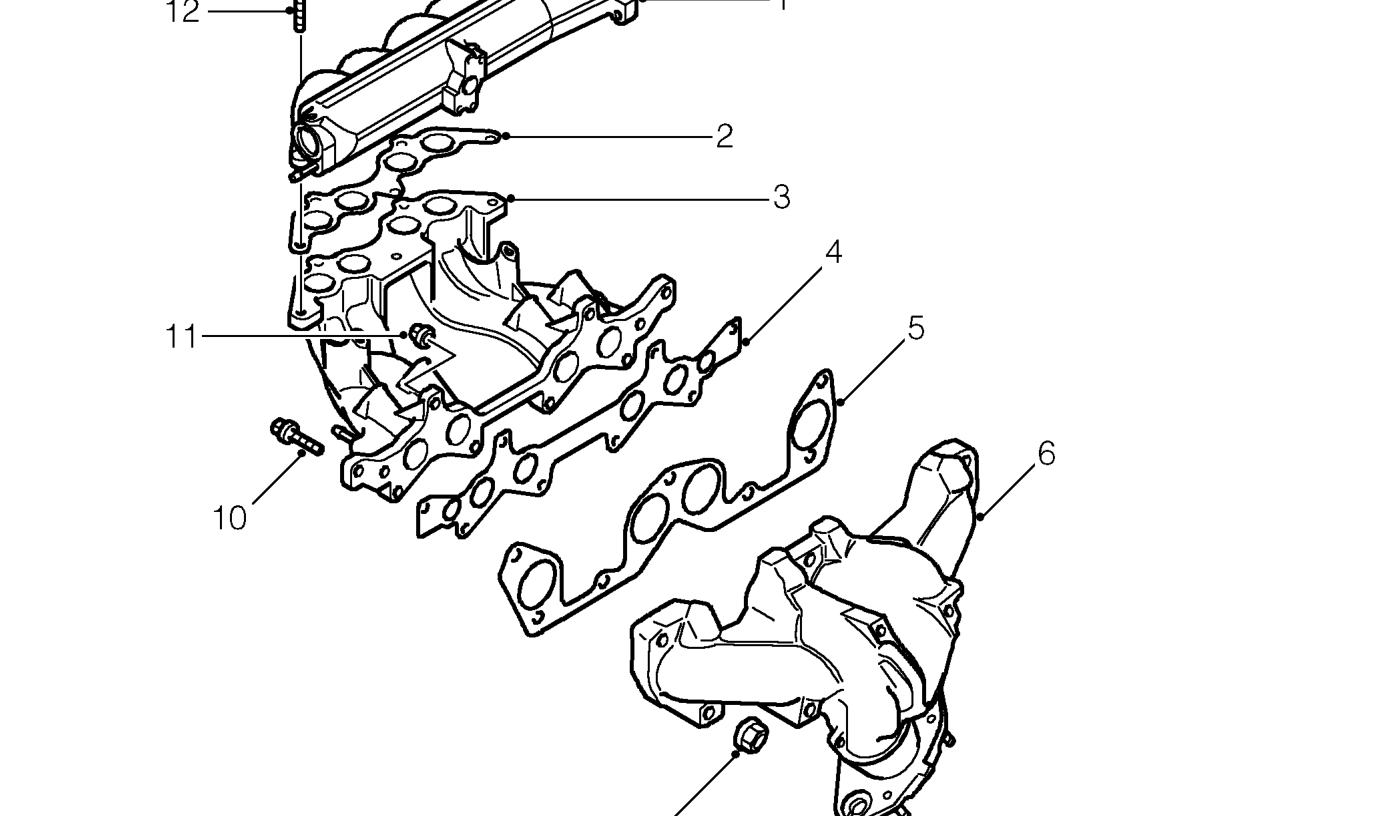

INLET AND EXHAUST MANIFOLD

1. Inlet manifold chamber
2. Gasket - inlet manifold to manifold chamber
3. Inlet manifold
4. Gasket - inlet manifold to cylinder head
5. Gasket - exhaust manifold to block
6. Exhaust manifold
7. Gasket - manifold to front pipe
8. Flange nut - 3 off
9. Flange nut - 7 off
10. Flange bolt - manifold to cylinder head - 6 off
11. Flange nut - 2 off
12. Flange bolt - inlet chamber to manifold - 5 off
