Throttle cable - ’t’ series

THROTTLE CABLE - ’T’ SERIES

Service repair no - 19.20.05

Adjust

NOTE: Before adjusting cable:

• Use TestBook to ensure that throttle position sensor and stepper motor are synchronised.
• Ensure that cable is correctly routed and located.

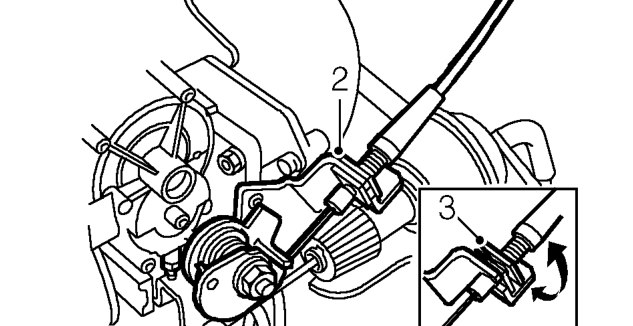

1. Switch ignition ON, wait 5 seconds and switch ignition off to ensure stepper motor is in setting position.

2. Release throttle cable adjusting nut from abutment bracket.

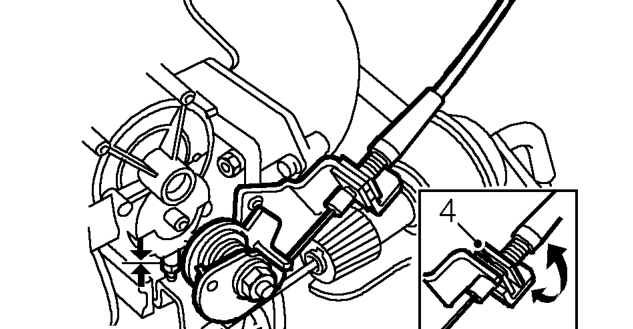

3. Position outer cable in abutment bracket and adjust cable adjusting nut until it just contacts top of abutment bracket.

4. Hold cam in ’throttle closed’ position, ensure throttle position screw is in contact with the stepper motor pin. Rotate cable adjusting nut until all slack is taken of inner cable. Ensure any linkage gap is taken up without opening throttle.
5. Locate groove in cable adjusting nut in abutment bracket.
6. Operate throttle pedal and ensure that throttle will open to its stop.
