Rover 400 Workshop Manual (1995-2000)10 · Engine management system - MEMS
10 · Engine

Air cleaner - ’k’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Air cleaner - ’k’ series
Engine management system - MEMSAir cleaner - ’k’ series

AIR CLEANER - ’K’ SERIES

Service repair no - 19.10.01

Remove

  1. Remove battery. See ELECTRICAL, Repairs.
Air cleaner - ’k’ series – Remove battery. See ELECTRICAL, Repairs.

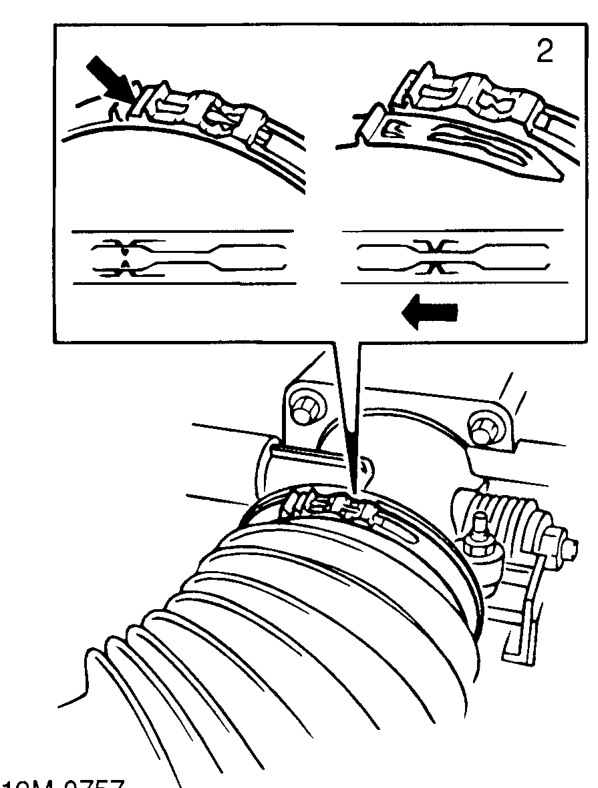

  1. Release clip securing intake pipe to throttle housing.
Air cleaner - ’k’ series – Release clip securing intake pipe to throttle housing.

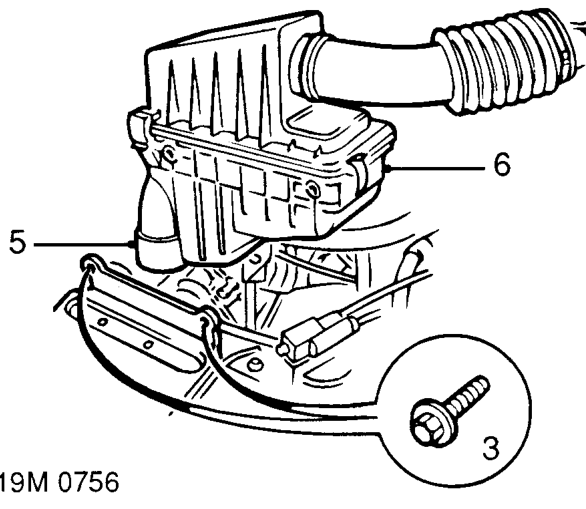

  1. Remove 2 bolts securing air cleaner to battery tray.
  2. Release intake pipe from throttle housing.
  3. Release air cleaner from air intake hose
  4. Remove air cleaner.

Refit

  1. Position air cleaner in vehicle and connect to air intake hose.
  2. Align air cleaner to battery tray.
  3. Fit and tighten 2 bolts securing air cleaner to battery tray.
  4. Connect intake pipe to throttle housing and secure with clip.
  5. Fit battery. See ELECTRICAL, Repairs.
