Fuel injectors - ’t’ series

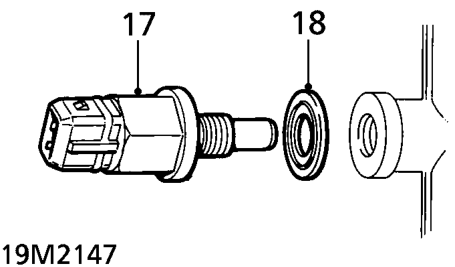

17. Remove fuel temperature sensor from fuel rail.
18. Remove and discard sealing washer.

Refit

1. Clean fuel temperature sensor and fuel rail mating face.
2. Fit NEW sealing washer to sensor.
3. Fit sensor to fuel rail and tighten to 15 Nm.
4. Clean injectors and injector recesses in fuel rail and inlet manifold.
5. Lubricate NEW injector ’O’ rings with fuel.
6. Fit NEW ’O’ rings to inlet end of injectors.
7. Remove plugs from fuel rail.
8. Fit injectors to fuel rail and secure clips with clips.
9. Remove protective caps from injectors.
10. Lubricate NEW injector ’O’ ring with fuel.
11. Fit NEW ’O’ rings to injectors.
12. Align injectors to inlet manifold and push fuel rail into position.
13. Fit bolts securing fuel rail to inlet manifold and tighten to 10 Nm.
14. Remove plugs from fuel return hose and fuel rail.
15. Connect fuel return hose to fuel rail and secure with clip.
16. Remove plugs from fuel feed hose and fuel rail.
17. Lubricate NEW fuel feed hose ’O’ ring with fuel.
18. Fit NEW ’O’ ring to fuel feed hose.
19. Connect fuel feed hose to fuel rail.
20. Position fuel rail support bracket to feed hose and manifold, fit bolts and tighten to 10 Nm.
21. Position injector harness and connect multiplugs.
22. Fit inlet manifold chamber. See this section.

FUEL INJECTORS - ’T’ SERIES

Service repair no - 19.60.10

Remove

1. Position absorbent cloth around fuel filter union, loosen union to relieve pressure and retighten union.
2. Remove inlet manifold chamber. See this section.

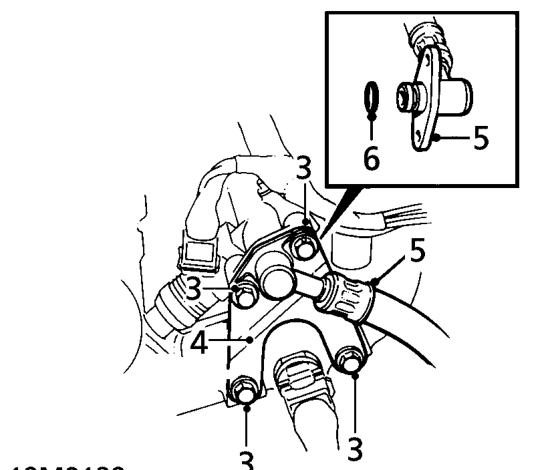

3. Remove 4 bolts securing fuel rail support bracket to fuel rail and manifold.
4. Remove support bracket.
5. Release fuel feed hose from fuel rail.
6. Remove and discard ’O’ ring.

CAUTION: Plug the connections.
