Coolant temperature sensor - ’t’ series

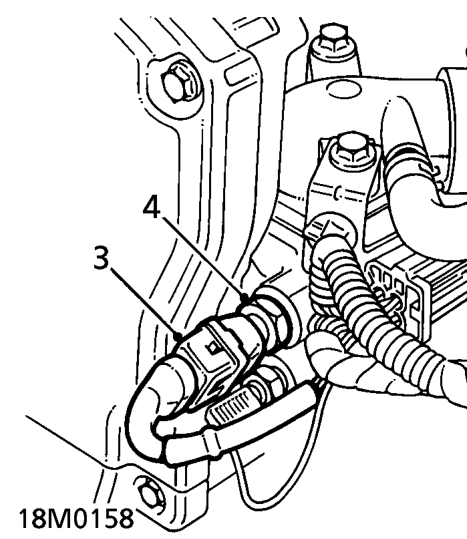

COOLANT TEMPERATURE SENSOR - ’T’ SERIES

Service repair no - 18.30.10

Remove

1. Disconnect battery earth lead.
2. Position absorbent cloth around coolant temperature sensor to absorb any coolant spillages.

3. Disconnect multiplug from sensor.
4. Remove sensor.

Refit

1. Clean sensor and mating face.
2. Fit and tighten sensor.
3. Connect multiplug to sensor.
4. Remove cloth.
5. Connect battery earth lead.
6. Check and if necessary top-up coolant.

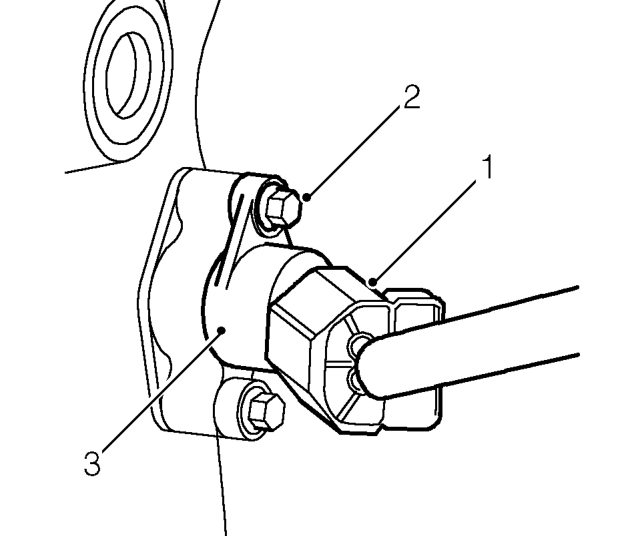

CRANKSHAFT POSITION SENSOR - ’T’ SERIES

Service repair no - 18.30.12

Remove

1. Disconnect multiplug from crankshaft position sensor.
2. Remove bolt securing crankshaft position sensor to gearbox adaptor plate.
3. Remove crankshaft position sensor.

Refit

1. Clean crankshaft position sensor and mating face of gearbox adaptor plate.
2. Position crankshaft position sensor, fit bolt and tighten to 6 Nm.
3. Connect multiplug to crankshaft position sensor.
