Engine coolant temperature sensor - ’k’ series

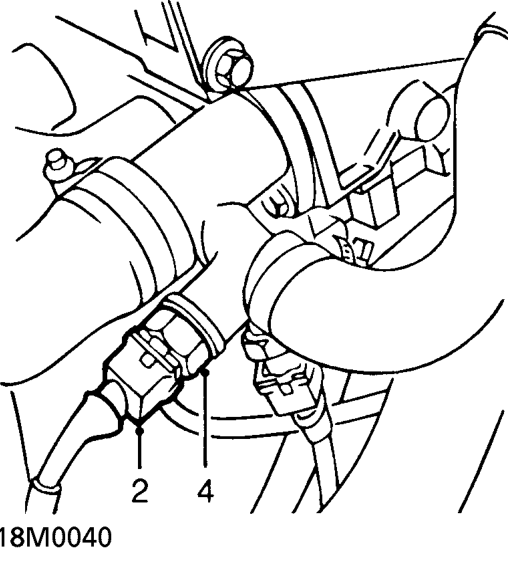

ENGINE COOLANT TEMPERATURE SENSOR - ’K’ SERIES

Service repair no - 18.30.10

Remove

1. Disconnect battery earth lead.

2. Disconnect multiplug from engine coolant temperature sensor.
3. Position drain tin to collect spillage.
4. Remove engine coolant temperature sensor.

Refit

1. Clean threads of engine coolant temperature sensor.
2. Apply Loctite 577 to threads of engine coolant temperature sensor.
3. Fit engine coolant temperature sensor and tighten to 15 Nm.
4. Connect multiplug to engine coolant temperature sensor.
5. Connect battery earth lead.
6. Top-up coolant. See MAINTENANCEMaintenance.

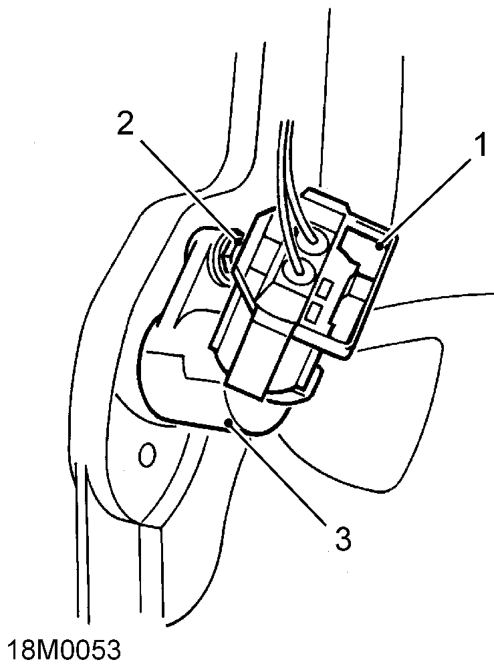

CRANKSHAFT POSITION SENSOR - ’K’ SERIES

Service repair no - 18.30.12

Remove

1. Disconnect multiplug from crankshaft position sensor.
2. Remove bolt securing crankshaft position sensor to flywheel engine.
3. Remove crankshaft position sensor.

Refit

1. Clean crankshaft position sensor and mating face of flywheel housing.
2. Position crankshaft position sensor, fit bolt and tighten to 6 Nm.
3. Connect multiplug to crankshaft position sensor.
