Cruise control ECU - ’t’ series

Make

Rover

Model

400 Workshop Manual

Year

1995–2000

Section

Repairs › Cruise control ECU - ’t’ series

Engine management system - MEMSCruise control ECU - ’t’ series

CRUISE CONTROL ECU - ’T’ SERIES

Service repair no - 19.75.49

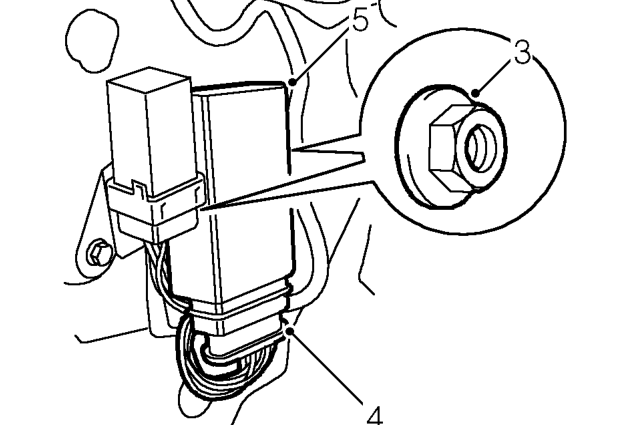

Remove

1. Disconnect battery earth lead.
2. Remove LH lower ’A’ post finisher. See BODY, Interior trim components.

3. Remove 2 nuts securing ECU to body.
4. Disconnect multiplug from ECU.
5. Remove ECU.

Refit

1. Position ECU, connect multiplug and align to body.
2. Fit and tighten nuts securing ECU.
3. Fit lower ’A’ post finisher. See BODY, Interior trim components.
4. Connect battery earth lead.
