Ignition coil - ’t’ series

Refit

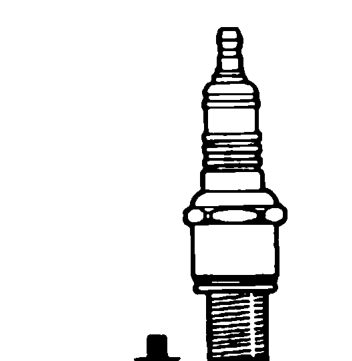

1. Set gap of each NEW spark plug to 0.85 mm.
2. Fit spark plugs and tighten to 25 Nm.
3. Connect h.t. leads to spark plugs and secure in clips.
4. Fit spark plug cover, fit screws and tighten to 2 Nm.

IGNITION COIL - ’T’ SERIES

Service repair no - 18.20.32

Remove

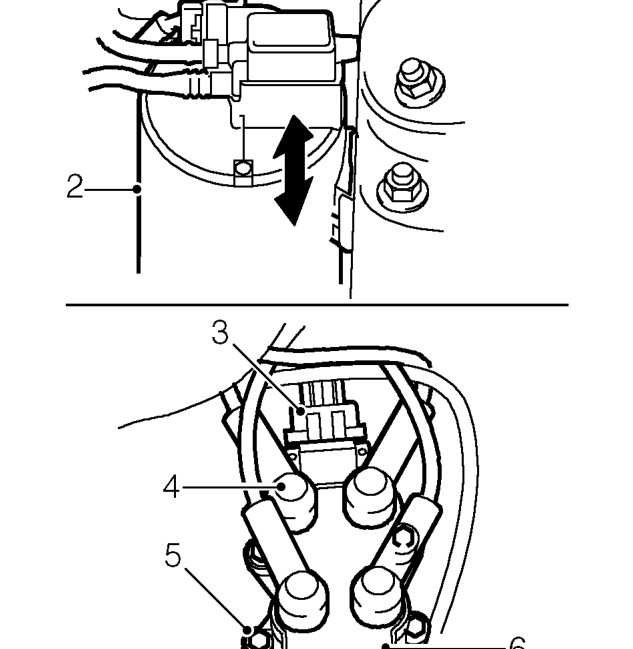

1. Disconnect battery earth lead.

2. Release evaporative emissions charcoal canister from mounting bracket and position aside.
3. Disconnect multiplug from ignition coil.
4. Disconnect h.t. leads from ignition coil.
5. Remove 4 bolts and nuts securing ignition coil to mounting bracket.
6. Remove ignition coil.
