Cruise control actuator unit - ’t’ series

CRUISE CONTROL ACTUATOR UNIT - ’T’ SERIES

Service repair no - 19.75.05

Remove

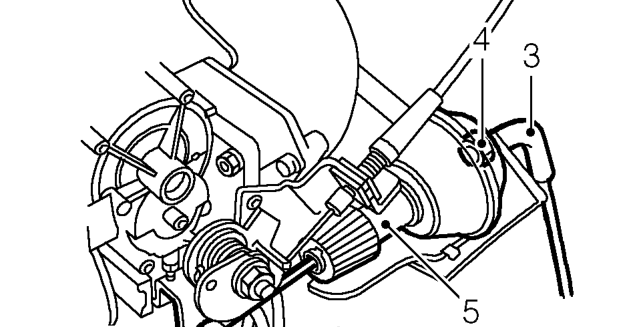

1. Disconnect battery earth lead.

2. Release cruise control actuator unit pull rod from throttle lever.
3. Release vacuum hose from cruise control actuator unit.
4. Remove nut securing cruise control actuator unit to mounting bracket.
5. Remove cruise control actuator unit.

Refit

1. Fit cruise control actuator unit to mounting bracket, fit and tighten nut.
2. Connect vacuum hose to cruise control actuator unit.
3. Connect cruise control actuator unit pull rod to throttle lever.
4. Check pull rod to retainer clearance. with lever fully returned, the pull rod should just be held by retainer.
5. Release retainer by turning anti-clockwise,₁ eliminate clearance and rotate retainer /₂ turn clockwise. Check pull rod is just held and₁ rotate retainer a further /₄ turn clockwise to lock.
6. Connect battery earth lead.

CRUISE CONTROL VACUUM CONTROL UNIT - ’T’ SERIES

Service repair no - 19.75.06

Remove

1. Remove air cleaner. See this section.

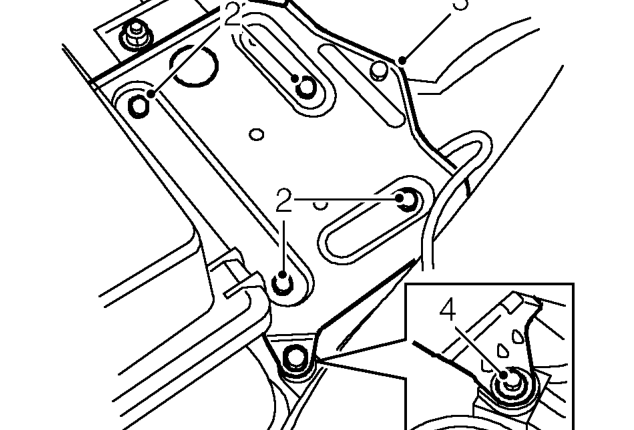

2. Remove 4 bolts and nut securing battery tray to mounting bracket and engine LH mounting.
3. Remove battery tray.

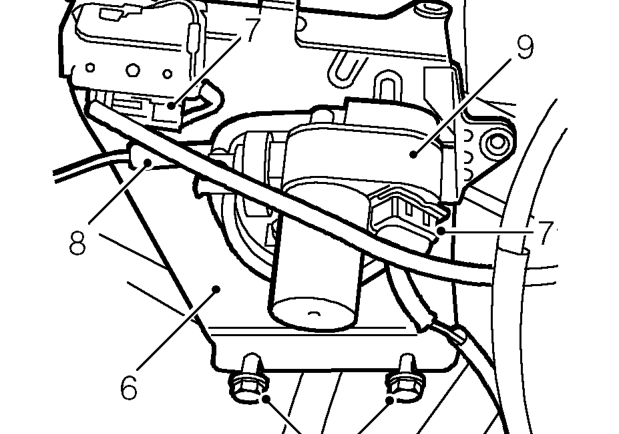

4. Remove bolt securing air intake hose to battery tray mounting bracket.

5. Loosen 2 bolts securing battery tray mounting bracket to body.
6. Release battery tray mounting bracket from fixings.
