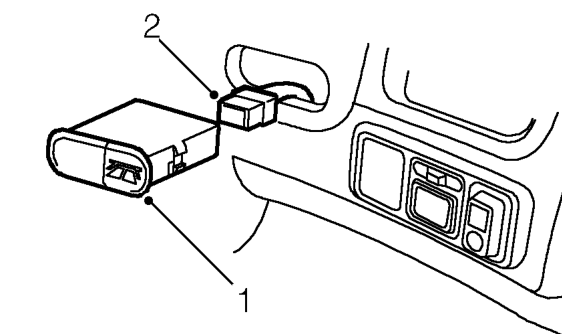

CRUISE CONTROL OPERATING SWITCH - ’T’ SERIES

Service repair no - 19.75.30

Remove

Cruise control operating switch - ’t’ series – Service repair no - 19.75.30
  1. Using a small flat ended screwdriver release switch from instrument surround.
  2. Disconnect multiplug from switch and remove switch.

Refit

  1. Position switch to instrument surround, connect multiplug and secure switch.

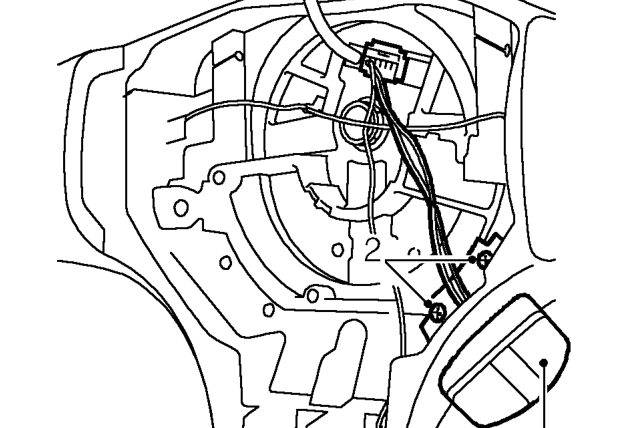

CRUISE CONTROL SET/RESUME SWITCH - ’T’ SERIES

Service repair no - 19.75.33

Remove

  1. Remove both horn push switches. See ELECTRICAL, Repairs.
Cruise control set/resume switch - ’t’ series – Remove both horn push switches. See ELECTRICAL, Repairs.
  1. Remove 2 screws securing switch to steering wheel.
  2. Release switch from steering wheel.
  3. Remove switch and harness from steering wheel.

Refit

  1. Fit harness to steering wheel and position switch to steering wheel.
  2. Fit and tighten screws securing switch to steering wheel.
  3. Fit both horn push switches. See ELECTRICAL, Repairs.
