Rover 400 Workshop Manual (1995-2000)10 · Engine management system - MEMS
10 · Engine

Idle air control valve - ’k’ series

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Idle air control valve - ’k’ series
Engine management system - MEMSIdle air control valve - ’k’ series

IDLE AIR CONTROL VALVE - ’K’ SERIES

Service repair no - 18.30.05

Remove

  1. Disconnect battery earth lead.

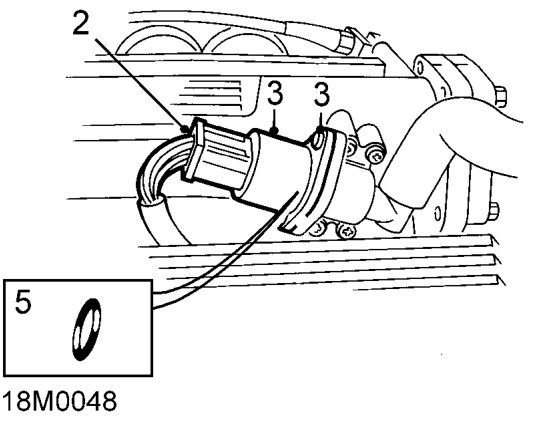

Idle air control valve - ’k’ series – Disconnect battery earth lead.
  1. Disconnect multiplug from idle air control valve.
  2. Remove 2 Tx20 Torx screws securing idle air control valve to inlet manifold.
  3. Remove idle air control valve from inlet manifold.
  4. Remove and discard ’O’ ring seal from idle air control valve.

Refit

  1. Clean mating faces of idle air control valve and inlet manifold.
  2. Lubricate new ’O’ ring seal with silicon grease and fit to idle air control valve.
  3. Fit idle air control valve to inlet manifold.
  4. Fit Torx screws securing idle air control valve to inlet manifold and tighten to 1.5 Nm.
  5. Connect multiplug to idle air control valve.
  6. Connect battery earth lead.

INTAKE AIR TEMPERATURE SENSOR - ’K’ SERIES

Service repair no - 18.30.09

Remove

  1. Disconnect battery earth lead.
Intake air temperature sensor - ’k’ series – Disconnect battery earth lead.
  1. Disconnect multiplug from intake air temperature sensor.
  2. Loosen intake air temperature sensor.
  3. Remove intake air temperature sensor.

Refit

  1. Clean threads of intake air temperature sensor.
  2. Clean mating faces of intake air temperature sensor and intake manifold.
  3. Fit sensor to intake manifold and tighten to 7 Nm.
  4. Connect multiplug to intake air temperature sensor.
  5. Connect battery earth lead.
