Engine control module (ECM) - ’k’ series

ENGINE CONTROL MODULE (ECM) - ’K’ SERIES

Service repair no - 18.30.01

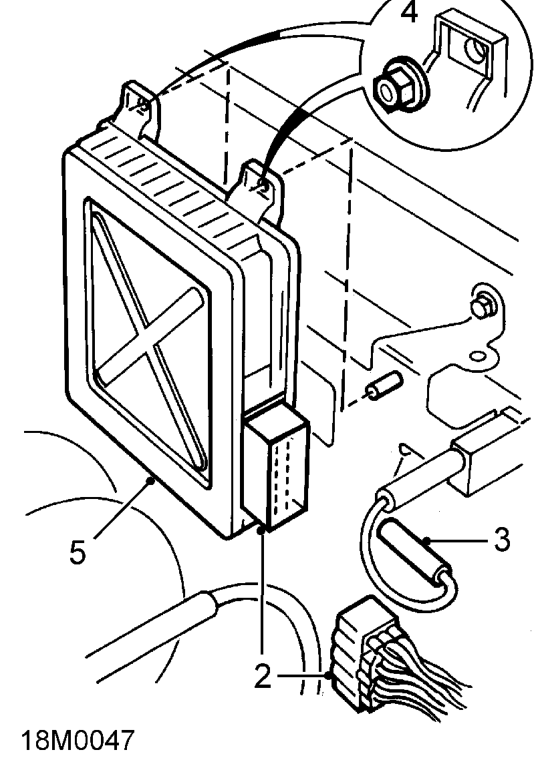

Remove

1. Disconnect battery earth lead.

2. Disconnect multiplug from engine control module.
3. Disconnect vacuum hose from engine control module.
4. Remove 2 nuts securing engine control module to mounting bracket.
5. Release and remove engine control module.

Refit

1. Fit engine control module to mounting bracket.
2. Fit 2 nuts securing engine control module to mounting bracket and tighten to 9 Nm.
3. Connect vacuum hose to engine control module.
4. Connect multiplug to engine control module.
5. Connect battery earth lead.

NOTE: If a new engine control module has been fitted, the engine control module will need to be programmed with the code from the anti-theft security unit using TestBook, before the engine can be started.
