Engine control module

ENGINE CONTROL MODULE

Service repair no - 18.30.01

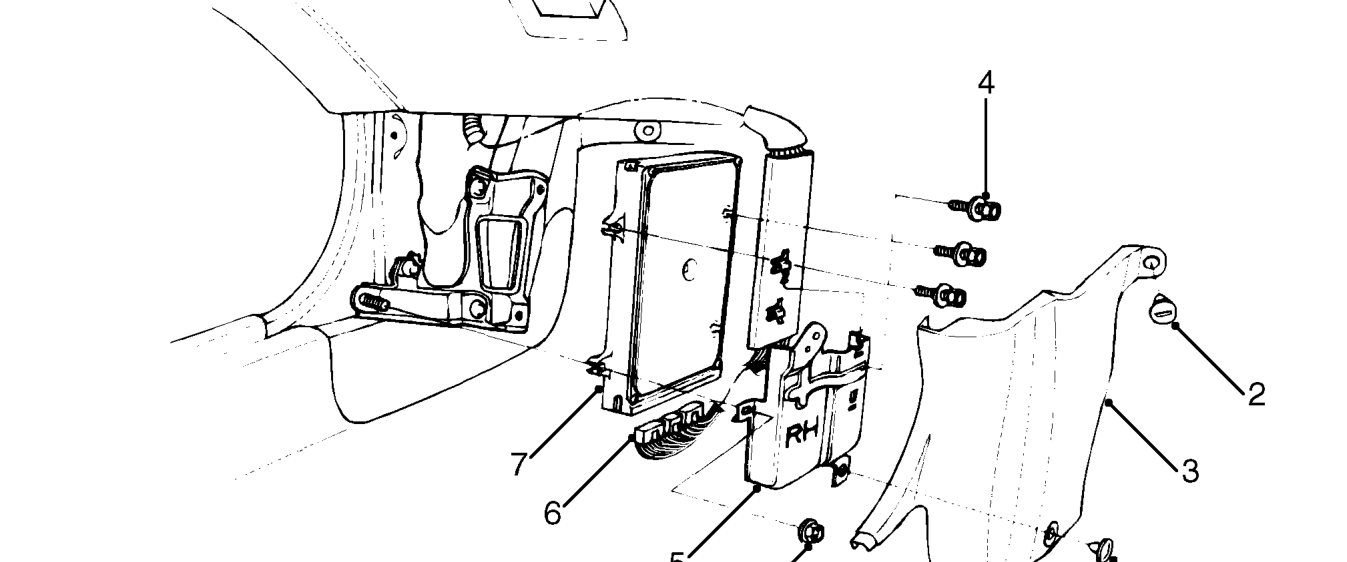

Remove

1. Disconnect battery earth lead.

2. Remove 2 studs securing ’A’ post lower finisher.
3. Release and remove finisher.
4. Remove 3 bolts and 1 nut securing control module.
5. Remove control module cover.
6. Release control module from ’A’ post and disconnect 3 multiplugs.
7. Remove control module.

Refit

1. Position control module and connect multiplugs.
2. Locate control module to ’A’ post, position cover and tighten bolts and nut.
3. Fit ’A’ post lower finisher and secure with studs.
