Air cleaner

AIR CLEANER

Service repair no - 19.10.01

Remove

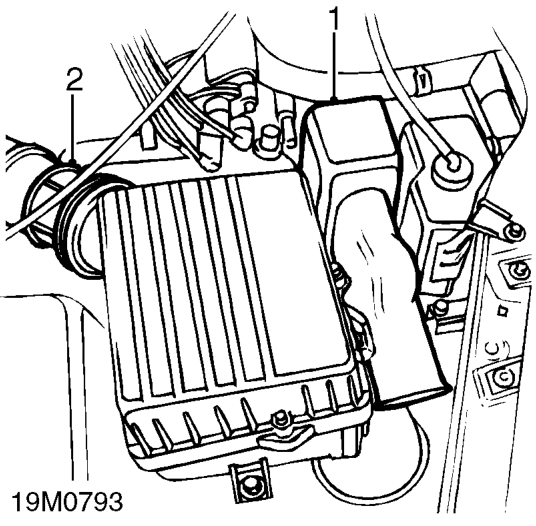

1. Remove air intake duct from resonator and air cleaner.

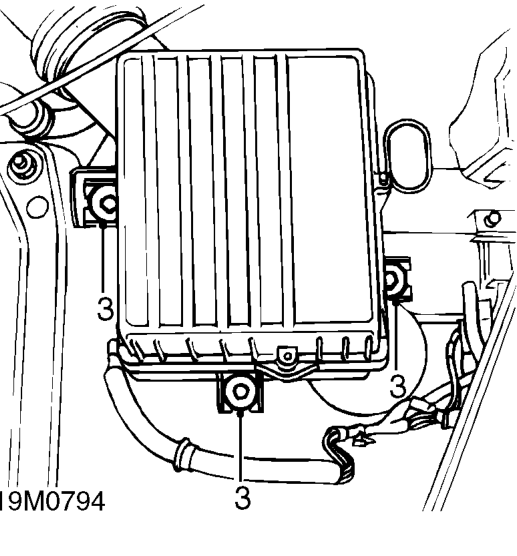

2. Release air intake hose from air cleaner.

3. Remove 3 bolts and remove air cleaner assembly from resonator.

Refit

1. Position air cleaner to resonator, fit and tighten bolts.
2. Secure intake hose and refit intake duct.

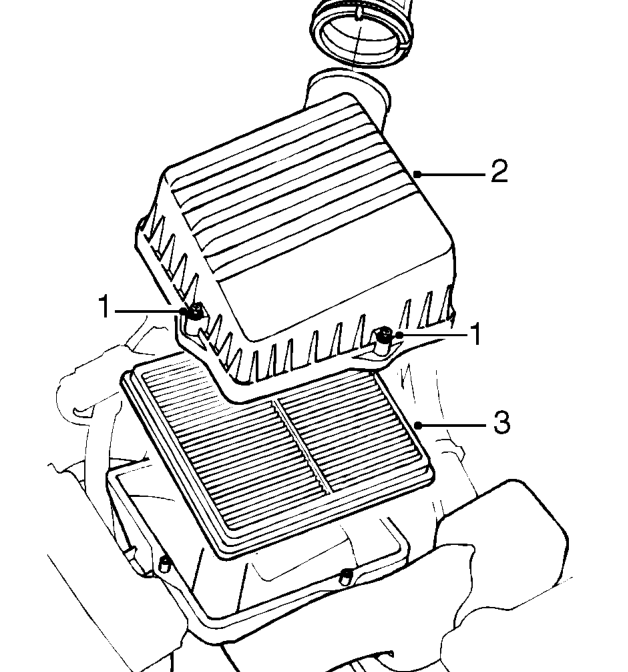

AIR CLEANER ELEMENT

Service repair no - 19.10.10

Remove

1. Release 4 screws securing 2 halves of air cleaner together.
2. Release top half of air cleaner and position aside.
3. Remove and discard air cleaner element.

Refit

1. Clean inside of air cleaner casing.
2. Fit new air cleaner element in casing with word ’UPPER’ uppermost.
3. Position top half of air cleaner casing and tighten screws.
