Throttle body - 97.5 my on

THROTTLE BODY - 97.5 MY ON

Service repair no - 19.22.45

Remove

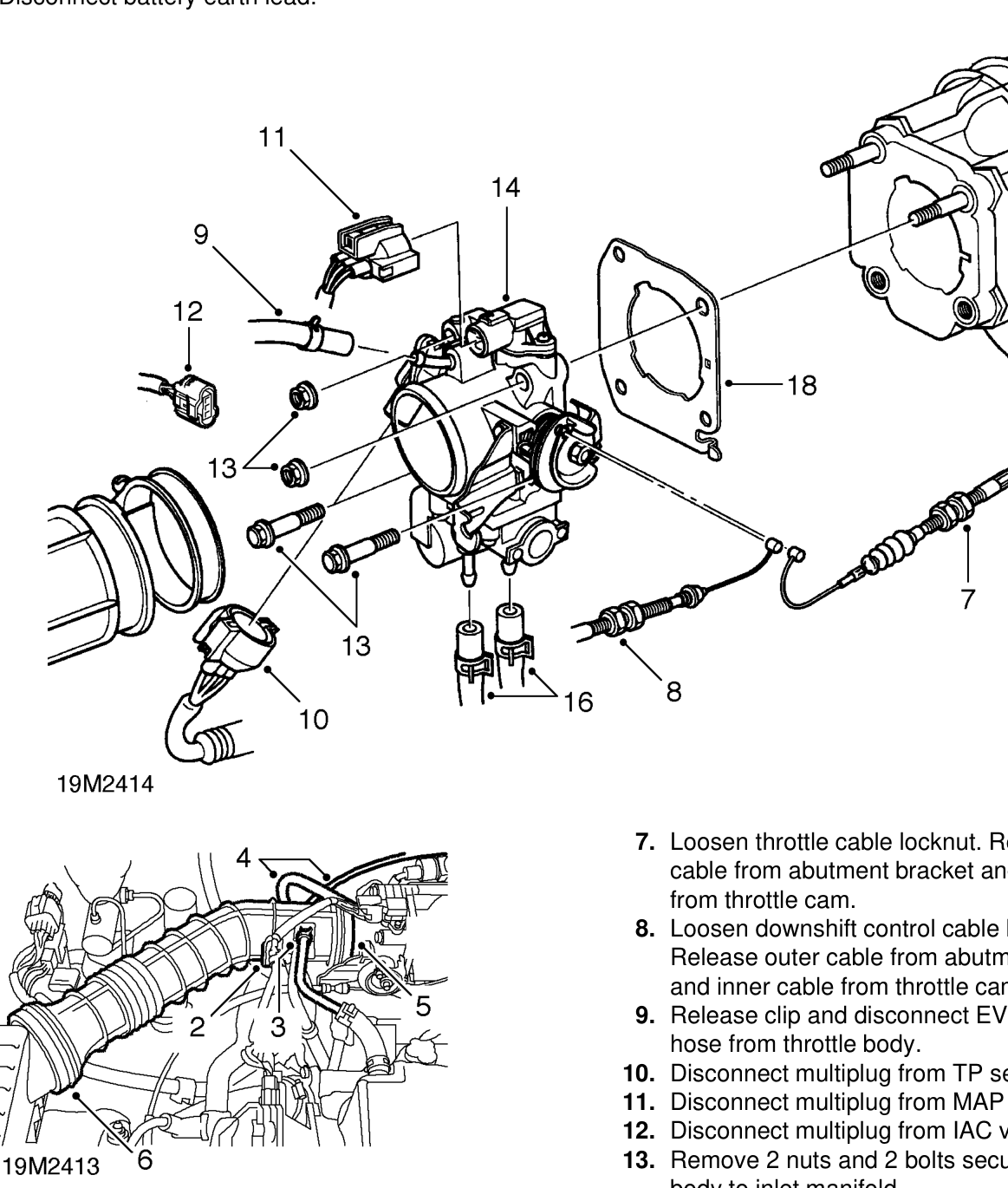

1. Disconnect battery earth lead.

7. Loosen throttle cable locknut. Release outer cable from abutment bracket and inner cable from throttle cam.
8. Loosen downshift control cable locknut. Release outer cable from abutment bracket and inner cable from throttle cam.
9. Release clip and disconnect EVAP canister hose from throttle body.
10. Disconnect multiplug from TP sensor.
11. Disconnect multiplug from MAP sensor.
12. Disconnect multiplug from IAC valve.
13. Remove 2 nuts and 2 bolts securing throttle
2. Disconnect multiplug from IAT sensor.
3. Release clip and hose securing breather pipe to intake hose.
4. Release EVAP canister and purge valve hoses from intake hose.
5. Loosen clip and disconnect intake hose from throttle body.
6. Remove intake hose from air cleaner.

body to inlet manifold.

14. Release throttle body from manifold studs to enable better access to coolant hoses.
15. Position absorbent cloth beneath IAC valve.
16. Noting their fitted positions, release clips and disconnect 2 coolant hoses from IAC valve.
17. Remove throttle body assembly.
18. Remove and discard gasket.
