Throttle body - 97.5 my on (page 2 of 2)

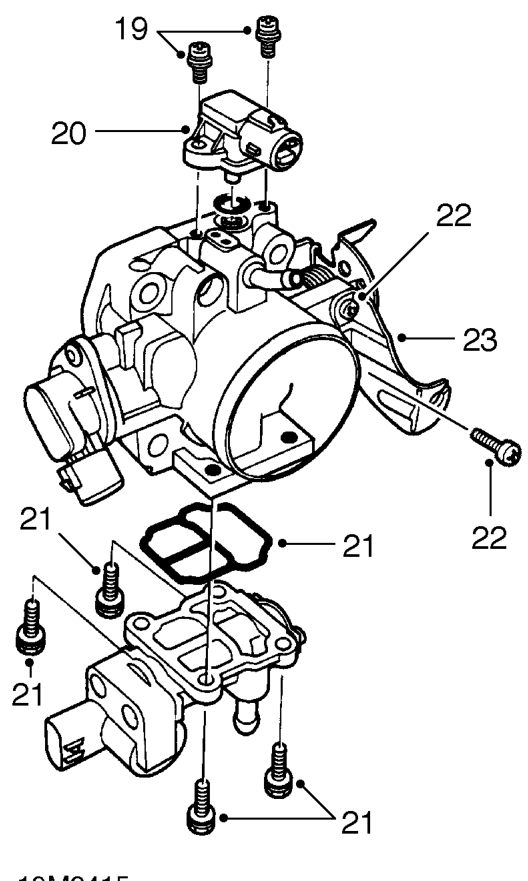

Do not carry out further dismantling if component is removed for access only.

19. Remove 2 screws securing MAP sensor to throttle body.
20. Remove MAP sensor and discard ’O’ ring.
21. Remove 4 screws securing IAC valve to throttle body and discard gasket.
22. Remove 2 screws securing downshift control cable abutment bracket to throttle body.
23. Remove abutment bracket.

Refit

1. Position downshift control cable abutment bracket and secure with screws.
2. Clean MAP sensor to throttle body mating faces.
3. Lubricate NEW ’O’ ring and fit to MAP sensor.
4. Fit MAP sensor to throttle body and secure with screws tightened to 2 Nm.
5. Clean IAC valve to throttle body mating faces.
6. Lubricate NEW gasket and fit to IAC valve.
7. Fit IAC valve to throttle body and secure with screws tightened to 3.5 Nm.
8. Clean throttle body to manifold mating faces.
9. Fit NEW gasket to manifold flange.
10. Position throttle body to manifold studs.
11. Connect coolant hoses to IAC valve and secure with clips.
12. Remove absorbent cloth from beneath IAC valve.
13. Fit nuts and bolts securing throttle body to manifold and tighten to 22 Nm.
14. Connect multiplug to IAC valve.
15. Connect multiplug to MAP sensor.
16. Connect multiplug to TP sensor.
17. Connect EVAP canister hose to throttle body and secure with clip.
18. Connect downshift control cable to throttle cam and abutment bracket.
19. Connect throttle cable to throttle cam and abutment bracket.
20. Fit intake hose to air cleaner.
21. Connect intake hose to throttle body and secure with clip.
22. Secure EVAP canister and purge valve hose to intake hose.
23. Fit breather hose to intake hose and secure with clip.
24. Connect multiplug to IAT sensor.
25. Top-up cooling system. See MAINTENANCEMaintenance.
26. Connect battery earth lead.
27. Adjust throttle cable. See Adjustments.
28. Adjust downshift control cable, See AUTOMATIC GEARBOX, Adjustments.
29. Set idle speed. See Adjustments.
