Rover 400 Workshop Manual (1995-2000)11 · Engine management system - PGMFi
11 · Engine

Ignition coil - up to 97.5 my

Make
Rover
Model
400 Workshop Manual
Year
1995–2000
Section
Repairs › Ignition coil - up to 97.5 my
Engine management system - PGMFiIgnition coil - up to 97.5 my

Refit

  1. Position module to mounting plate and tighten screws.
  2. Fit module to distributor housing, position lead clip and tighten screws.
  3. Secure leads to module.
  4. Fit flash shield.
  5. Fit rotor arm. See this section.

IGNITION COIL - UP TO 97.5 MY

Service repair no - 18.20.32

Remove

  1. Remove rotor arm. See this section.

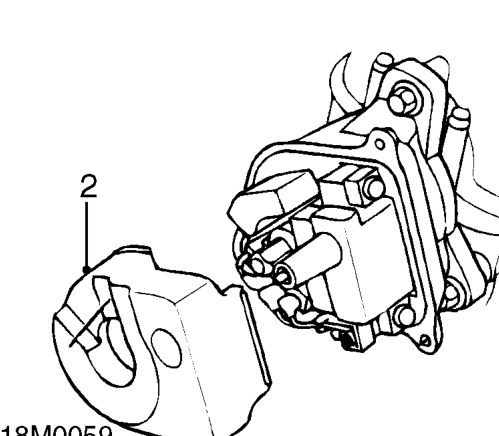

Ignition coil - up to 97.5 my – Remove rotor arm. See this section.
  1. Remove flash shield.

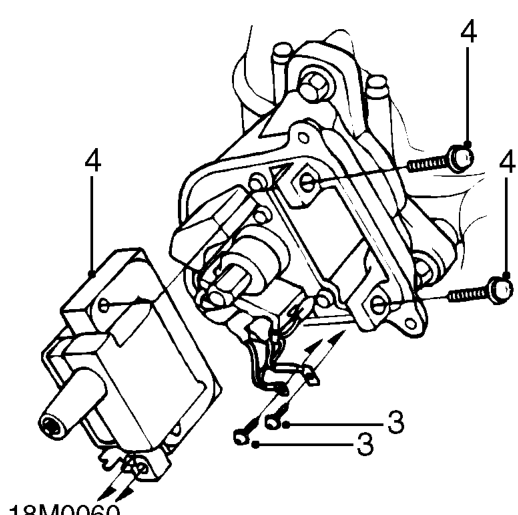

Ignition coil - up to 97.5 my – Remove flash shield.
  1. Noting lead positions, remove 2 coil terminal screws and move leads aside.
  2. Remove 2 screws securing ignition coil and withdraw coil from distributor housing.

Refit

  1. Fit ignition coil to distributor housing and tighten screws.
  2. Position coil lead terminals and tighten terminal screws.
  3. Fit flash shield.
  4. Fit rotor arm. See this section.
